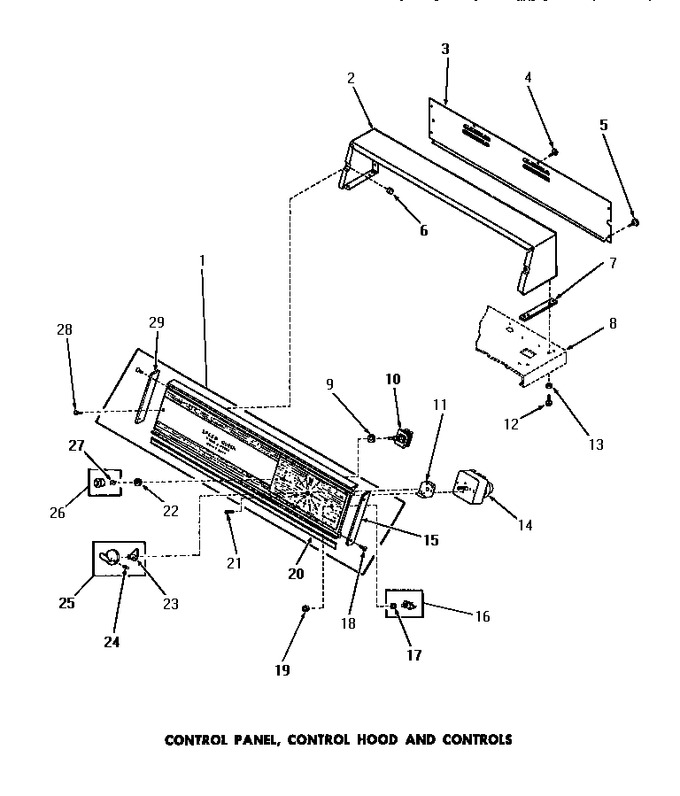

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
Y54971 |
|
Control Panel |
|
Appelez-nous
|
- |
|
|
|
| 2 |
52530H |
|
Control Hood, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 2 |
52530W |
|
Control Hood, White |
|
Appelez-nous
|
- |
|
|
|
| 2 |
52530A |
|
Control Hood, Avocado |
|
Appelez-nous
|
- |
|
|
|
| 3 |
52539GR |
|
Control Hood Rear Cover, Gray |
|
Appelez-nous
|
- |
|
|
|
| 4 |
WP3177991 |
 |
Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
|
Immediately |
$ 6.47 |
|
|
| 5 |
25724 |
|
Hex Head Screw |
|
Appelez-nous
|
- |
|
|
|
| 6 |
54038 |
|
Nut,speed U-type |
|
Appelez-nous
|
- |
|
|
|
| 7 |
23028 |
|
Gasket,control Box End |
|
Appelez-nous
|
- |
|
|
|
| 8 |
Y00000000 |
|
See Note Cabinet Top |
|
Appelez-nous
|
- |
|
|
|
| 9 |
91176 |
|
Lockwasher,3/8 Intshkp |
|
|
|
$ 1.44 |
|
|
| 10 |
53380 |
|
Temperature Selector Switch |
|
Appelez-nous
|
- |
|
|
|
| 11 |
25966 |
|
Spacer,timer |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WP90767 |
 |
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 7.04 |
|
|
| 13 |
20493 |
|
Washer,11/64idx3/8odx3 |
|
Appelez-nous
|
- |
|
|
|
| 14 |
52594 |
|
Timer |
|
Appelez-nous
|
- |
|
|
|
| 15 |
25073 |
|
End Cap, Right |
|
|
|
$ 38.89 |
|
|
| 16 |
55882 |
 |
Assy, Switch (Replaces: 53768) |
|
|
Immediately |
$ 61.79 |
|
|
| 17 |
Sub. To D513506 |
|
Nut,hex 15/32-32 (Replaces: 52947) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
Sub. To D512973 |
|
Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
Sub. To D513506 |
|
Nut,hex 15/32-32 (Replaces: 52947) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
Y0053880 |
|
Actuator, Water |
|
Appelez-nous
|
- |
|
|
|
| 21 |
Y0054441 |
|
Nameplate, Handle |
|
Appelez-nous
|
- |
|
|
|
| 22 |
24205 |
|
Nut,knurled 3/8-24 |
|
|
|
$ 244.00 |
|
|
| 23 |
24857 |
|
Indicator |
|
Appelez-nous
|
- |
|
|
|
| 24 |
25285 |
|
Setscrew |
|
Appelez-nous
|
- |
|
|
|
| 25 |
24858 |
|
Assy,knob-timer |
|
Appelez-nous
|
- |
|
|
|
| 26 |
22245 |
|
Xreplace |
|
Appelez-nous
|
- |
|
|
|
| 27 |
22244 |
|
Clip,c Xreplace |
|
Appelez-nous
|
- |
|
|
|
| 28 |
25232 |
|
Screw,8ab-18x7/8 Oval |
|
Appelez-nous
|
- |
|
|
|
| 29 |
25072 |
|
End Cap, Left |
|
|
|
$ 32.09 |
|
|
