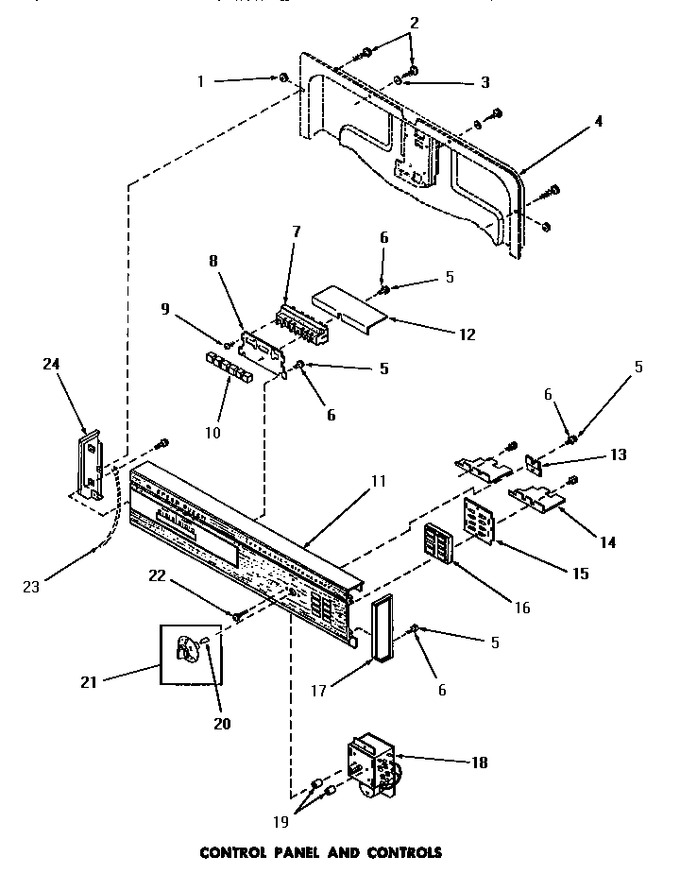

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110134		Grommet		Appelez-nous	-
2	65022		Screw,phillips Head				$ 83.47
3	21147		Washer,11/64idx1/16odx		Appelez-nous	-
4	Y00000000		See Note Door Panel, Inner		Appelez-nous	-
5	Sub. To D510147P		Screw,8b-18 X 1/2 Rd H   (Replaces: 51778)		Appelez-nous	-
6	Y20278		Lockwasher		Appelez-nous	-
7	M110135		Switch,selector Xreplace		Appelez-nous	-
8	M110129		Mounting Bracket		Appelez-nous	-
9	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
10	M110126		Button,push Xreplace		Appelez-nous	-
11	M110000		Control Panel		Appelez-nous	-
12	M110128		Switch Guard		Appelez-nous	-
13	M110131		Bracket		Appelez-nous	-
14	M110127		Timer Guard		Appelez-nous	-
15	M110130		Board,circuit Xreplace		Appelez-nous	-
16	M110132		Lens		Appelez-nous	-
17	M110123		End Cap, Right		Appelez-nous	-
18	M110124		Timer Xreplace		Appelez-nous	-
19	M110136		Spacer		Appelez-nous	-
20	M110202		Clip Xreplace		Appelez-nous	-
21	M110121		Knob,timer Xreplace		Appelez-nous	-
22	M110146		Screw And Lockwasher		Appelez-nous	-
23	Y00000000		See Note Ground Wire		Appelez-nous	-
24	M110122		End Cap, Left		Appelez-nous	-
	NOTE:		Tub Kit Inc 20376 Nut(2), 81108 O-ring(4), 81120 Screw(2), 90690 Washer(2), 91163 Screw(2), M110015 Gskt, M10016 Gskt, M110045 Gskt, M110059 Gskt Clip(2), M11		Appelez-nous	-
