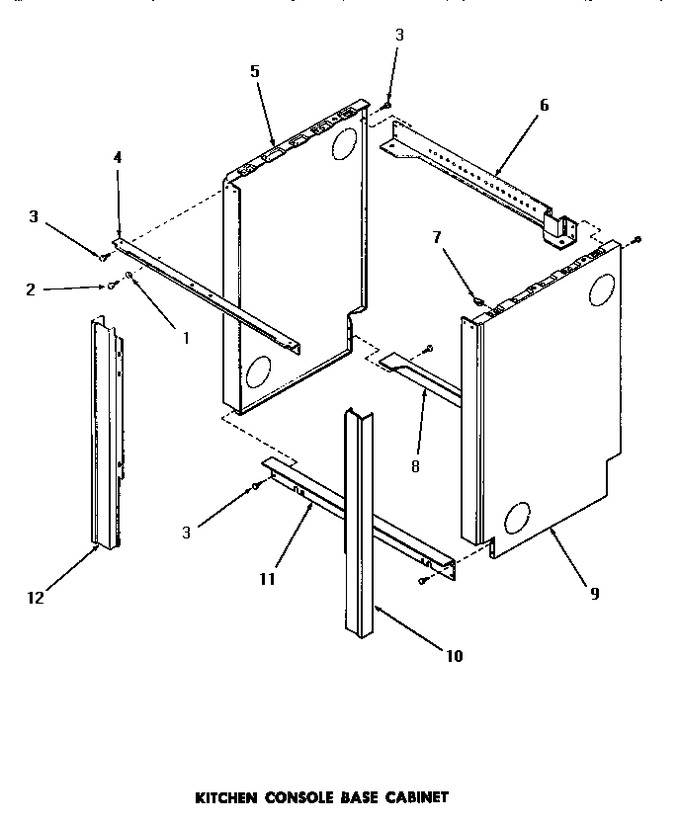

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21643		Washer,13/64idx3/8odx1		Appelez-nous	-
2	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
3	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
4	M100009		Brace		Appelez-nous	-
5	M100006H		Side Panel, Left, Harvest Gold		Appelez-nous	-
5	M100006W		Side Panel, Left, White		Appelez-nous	-
5	M100006A		Side Panel, Left, Avocado		Appelez-nous	-
6	M100005		Side Brace, Top		Appelez-nous	-
7	M100016		Speed Nut		Appelez-nous	-
8	M100004		Side Brace, Bottom		Appelez-nous	-
9	M100007W		Side Panel, Right, White		Appelez-nous	-
9	M100007A		Side Panel, Right, Avocado		Appelez-nous	-
9	M100007H		Side Panel, Right, Harvest Gol		Appelez-nous	-
10	M100008		Cabinet Trim, Right		Appelez-nous	-
11	M100002		Toe Stop		Appelez-nous	-
12	M100003		Cabinet Trim, Left		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
