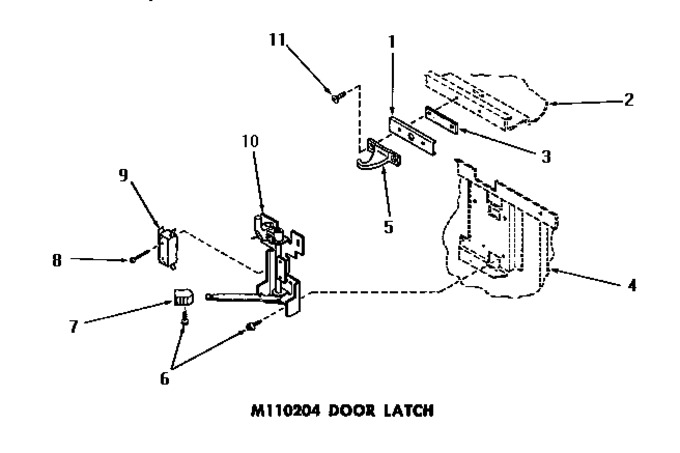

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110243		Shim		Appelez-nous	-
2	Y00000000		See Note Tub		Appelez-nous	-
3	M110061		Shim Xreplace		Appelez-nous	-
4	Y00000000		See Note Door Panel, Inner		Appelez-nous	-
5	M110203		Latch Strike		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	M110206		Knob Xreplace		Appelez-nous	-
8	10398		Screw			Immediately	$ 33.34
9	M110205		Switch Xreplace		Appelez-nous	-
10	M110204		Latch,door Xreplace		Appelez-nous	-
11	91163		Phillips Head Screw		Appelez-nous	-
