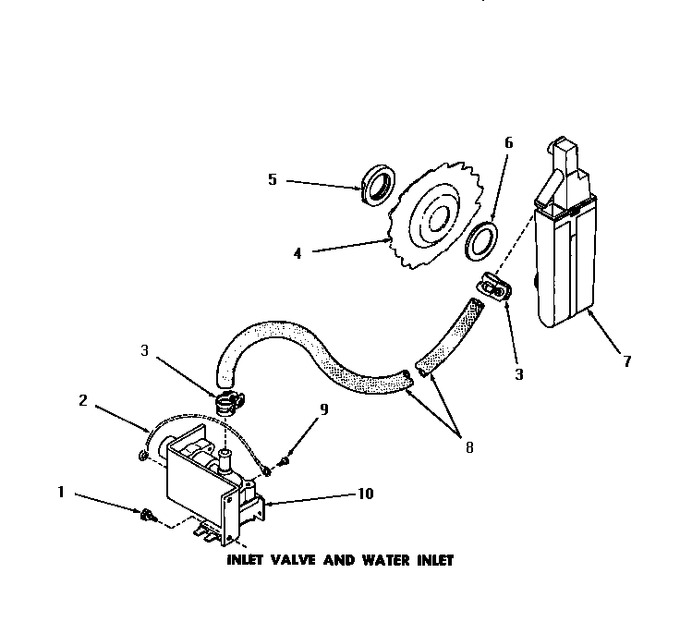

06 - Inlet Valve & Water Inlet


07 - Kitchen Console Base Cabinet


08 - Loading Door & Access Panel


09 - M110063 Door Latch


10 - M110204 Door Latch


11 - Motor, Relay & Pump Body


12 - Pump Impeller & Diffuser Kit


13 - Racks


14 - Spray Arms & Hoses


15 - Tub, Gasket, Float Switch & Heating Elem


16 - Wetting Agent Dispenser


17 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
2	Y00000000		See Note Ground Wire		Appelez-nous	-
3	24904		Clamp		Appelez-nous	-
4	Y00000000		See Note Tub		Appelez-nous	-
5	M110111		Nut		Appelez-nous	-
6	M110112		Washer Xreplace		Appelez-nous	-
7	M110110		Inlet,water Xreplace		Appelez-nous	-
8	M110109		Tube,inlet Xreplace		Appelez-nous	-
9	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
10	M110104		Valve,inlet Xreplace		Appelez-nous	-
