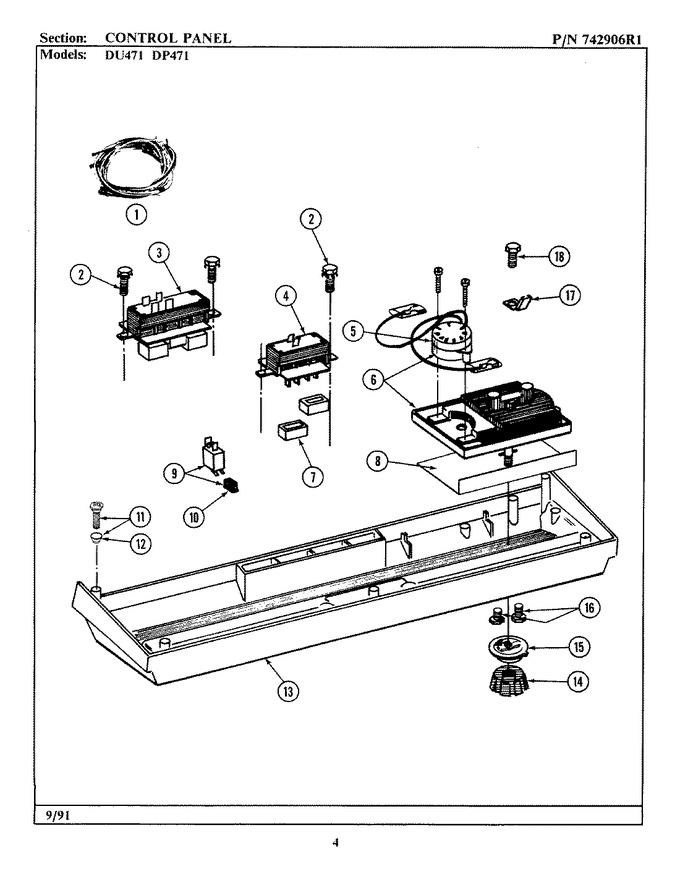

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	902189		Harness		Appelez-nous	-
1	902404		Wire Harness	2	Appelez-nous	-
1	902182		Sub Harness -		Appelez-nous	-
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	0-2			$ 9.40
3	901905		Control Swt	0-2	Appelez-nous	-
4	901904		Control Switch	0-2	Appelez-nous	-
5	901829		Timer Motor	0-2	Appelez-nous	-
6	W10841140		Timer Kit   (Replaces: 902407)	0-2		Immediately	$ 24.92
7	912064		Button For Jenn-air Switches	0-2	Appelez-nous	-
8	912002		Barrier For Timer	0-2	Appelez-nous	-
9	901636		Indicator Lamp	0-2	Appelez-nous	-
10	912065		Lens	0-2	Appelez-nous	-
11	901434		Screw And Washer Assembly	0-2	Appelez-nous	-
12	912006		Washer	0-2	Appelez-nous	-
13	902186		Control Panel W/insert	0-2	Appelez-nous	-
14	901900		Timer Knob With Insert	0-2	Appelez-nous	-
15	911602		Timer Indicator Dial-chrome	0-2	Appelez-nous	-
16	W11684507		Screw   (Replaces: 212707)	0-2			$ 12.23
17	911702		Ground Receptacle	0-2	Appelez-nous	-
18	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	0-2			$ 9.79
