SELECT A DIAGRAM

01 - Blower Assembly


02 - Cabinet Assy.


03 - Control Panel


04 - Door

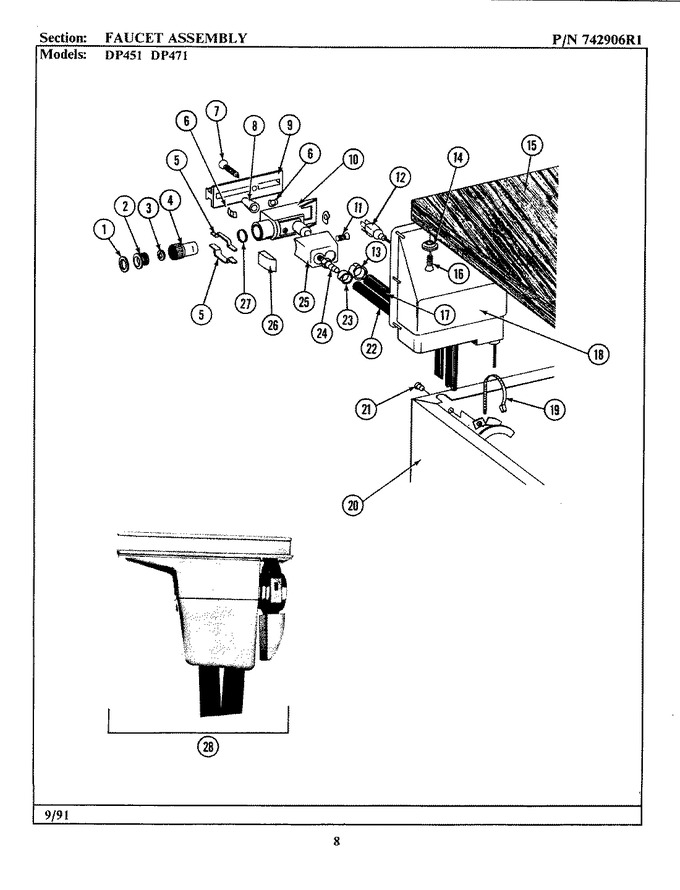

05 - Door


06 - Faucet Assy.


07 - Pump Assembly


08 - Racks


09 - Tub


10 - Tub Assembly


11 - Tub Support


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	910209		Washer For Faucet Adapter	-			$ 35.86
2	910208		Faucet Adapter	-			$ 24.50
3	910223		Washer, Aerator	-			$ 26.39
4	WPW10254672		Aerator   (Replaces: 900084)	-		Immediately	$ 49.54
5	910139		Disconnect Lever	-	Appelez-nous	-
6	910196		Fastener	-	Appelez-nous	-
7	910184		Screw	-	Appelez-nous	-
8	910149		Button For Valve	-	Appelez-nous	-
9	910123		Coupler Grip	-	Appelez-nous	-
10	900065		Faucet Coupler	-	Appelez-nous	-
11	W10756178		Screw   (Replaces: 910182)	-			$ 5.39
12	901115		Power Cord W/connecting Nut	-			$ 42.68
13	WP285655		Hose Clamp - 1-1/4 Inch Max   (Replaces: 204680)	-		Immediately	$ 7.55
14	911017		Spacer Washer	-	Appelez-nous	-
15	900709		Wood Top	-	Appelez-nous	-
16	910993		Screw	-	Appelez-nous	-
17	WP903404		Hose, Drain   (Replaces: 912306)	-			$ 151.87
18	900632		Retainer For Faucet Coupler	-	Appelez-nous	-
19	911020		Cable Strap	-	Appelez-nous	-
20	901121L		Cabinet-almond	-	Appelez-nous	-
20	901121		Cabinet-white	-	Appelez-nous	-
20	901121M		Cabinet-harvest Wheat	-	Appelez-nous	-
21	WP210720		Rivet   (Replaces: 210720)	-			$ 12.14
22	WP903404		Inlet Hose   (Replaces: 900886)	-			$ 151.87
23	WP489503		Hose Clamp - 5/8 Inch Max   (Replaces: 900367)	-		Immediately	$ 9.68
24	911017		Spacer Washer	-	Appelez-nous	-
25	910148		Cover For Hose Clamps	-	Appelez-nous	-
26	910140		Thumb Release Button	-	Appelez-nous	-
27	WP910218		Coupler Gasket   (Replaces: 910218)	-		Immediately	$ 9.05
28	WP903404		Hose & Coupler Assembly   (Replaces: 902810)	-			$ 151.87

    View Diagram in Separate Window       Print Part List
