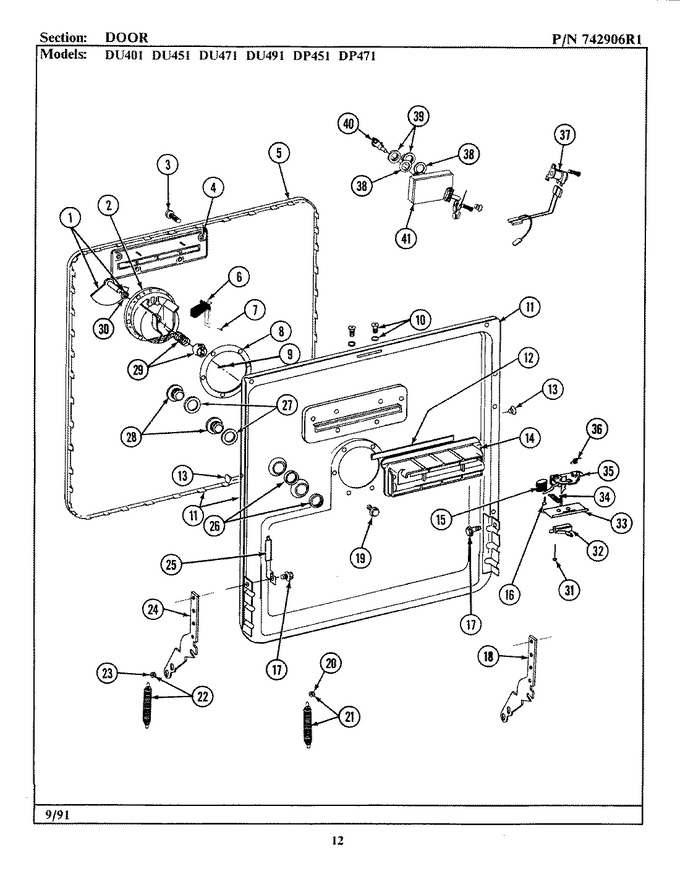

01 - Blower Assembly
02 - Cabinet Assy.
03 - Control Panel
04 - Door
05 - Door
06 - Faucet Assy.
07 - Pump Assembly
08 - Racks
09 - Tub
10 - Tub Assembly
11 - Tub Support
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 901108 | Detergent Cup,cover & Seal | - |
|
- | ||||
| 2 | 901839 | Detergent Cup, Canada | - |
|
- | ||||
| 3 | 911700 | Screw | - |
|
- | ||||
| 4 | W10841140 | Silastic,adh.sealant (Replaces: Y058700) | - |
|
Immediately | $ 24.92 | |||
| 4 | 911598 | Cover For Door Vent | - |
|
- | ||||
| 5 | WP901403 | Gasket, Door (Replaces: 901403) | - |
|
Immediately | $ 170.40 | |||
| 6 | 901011 | Bi-metal Release | - |
|
- | ||||
| 7 | 910186 | Screw | - |
|
- | ||||
| 8 | 910413 | Gasket | - |
|
- | ||||
| 9 | 911348 | Detergent Cup Pin | - |
|
- | ||||
| 10 | 901090 | Screw And Washer Assembly | - |
|
- | ||||
| 11 | 901551 | Door And Gasket Assembly | - |
|
- | ||||
| 12 | 911692 | Flapper For Vent | - |
|
- | ||||
| 13 | 911036 | Guide Button | - |
|
- | ||||
| 14 | 911597 | Vent For Door | - |
|
- | ||||
| 15 | 911599 | Knob For Latch Handle | - |
|
- | ||||
| 16 | Y911263 | Screw | - |
|
- | ||||
| 17 | 911066 | Screw | - |
|
- | ||||
| 18 | 911466 | Hinge-right Hand | - |
|
- | ||||
| 19 | 911439 | Screw | - |
|
- | ||||
| 20 | 910391 | Insert | - |
|
$ 5.84 | ||||
| 21 | Y901862 | Door Spring Kit | - |
|
$ 20.84 | ||||
| 23 | 911448 | Insert For Hinge | - |
|
$ 5.75 | ||||
| 24 | 911467 | Hinge-left Hand | - |
|
- | ||||
| 25 | 911874 | Grounding Bracket | - |
|
- | ||||
| 26 | 910170 | Nut-fill Spout | - |
|
- | ||||
| 27 | 910069 | Washer, Tub Top | - |
|
$ 35.86 | ||||
| 28 | 910821 | Plug For Dispenser Holes | - |
|
$ 37.31 | ||||
| 29 | 902247 | Cam And Spring Kit | - |
|
- | ||||
| 30 | 911397 | Detergent Cup Seal | - |
|
$ 24.13 | ||||
| 31 | 757392 | Screw-door Sw. Shield | - |
|
- | ||||
| 32 | 901284 | Switch, Door | - |
|
- | ||||
| 33 | 912078 | Door Switch Shield | - |
|
- | ||||
| 34 | 911592 | Return Spring | - |
|
- | ||||
| 35 | 901553 | Door Latch Assembly | - |
|
- | ||||
| 36 | 911591 | Spring, Interlock | - |
|
- | ||||
| 37 | 900414 | Solenoid | - |
|
- | ||||
| 38 | 910069 | Washer, Tub Top | - |
|
$ 35.86 | ||||
| 39 | 910170 | Nut-fill Spout | - |
|
- | ||||
| 40 | 910431 | Filler Plug-dispenser Valve | - |
|
- | ||||
| 41 | 901572 | Rinse Dispenser Kit | - |
|
- |
