01 - Blower Assembly
02 - Cabinet Assy.
03 - Control Panel
04 - Door
05 - Door
06 - Faucet Assy.
07 - Pump Assembly
08 - Racks
09 - Tub
10 - Tub Assembly
11 - Tub Support
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

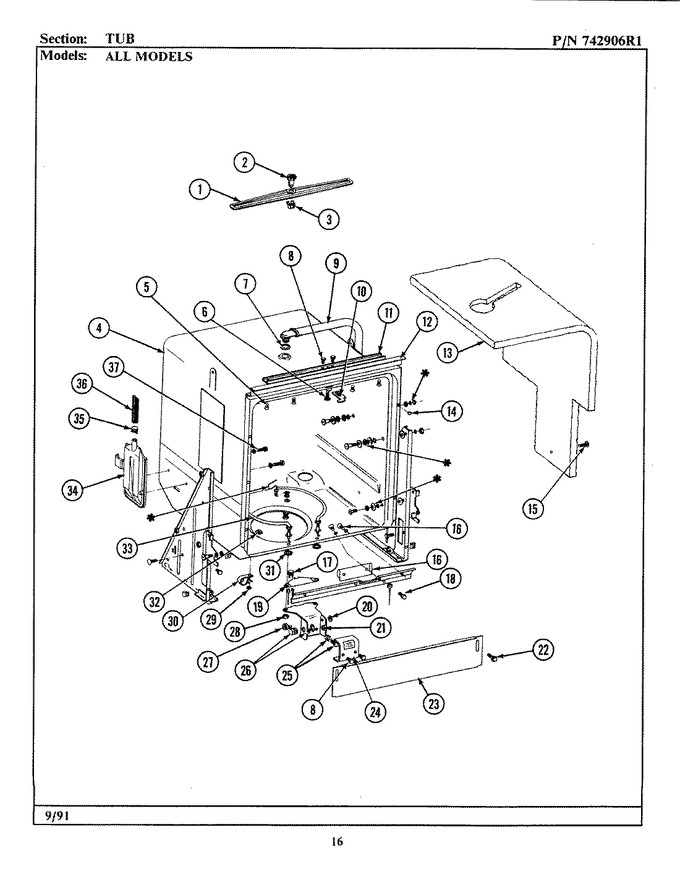

| 1 | 900020 | Upper Spray Arm (w/nut) | - |
|
- | ||||
| 2 | 911594 | Outlet For Upper Spray Arm | - |
|
- | ||||
| 3 | 911861 | Nut | - |
|
- | ||||
| 4 | 901304 | Tub Assembly | - |
|
- | ||||
| 5 | 901090 | Screw And Washer Assembly | - |
|
- | ||||
| 6 | WP3400094 | Screw (Replaces: 911665) | - |
|
$ 7.14 | ||||
| 7 | 910069 | Washer, Tub Top | - |
|
$ 35.86 | ||||
| 8 | WPW10139210 | Screw (Replaces: 910624) | - |
|
$ 6.75 | ||||
| 9 | 901586 | Top Spray Hose W/coupling | - |
|
- | ||||
| 10 | 911582 | Strike | - |
|
- | ||||
| 11 | 911941 | Top Flange Channel | - |
|
- | ||||
| 12 | 902889 | Top Flange W/screw | - |
|
- | ||||
| 13 | 911916 | Insulation For Tub | - |
|
- | ||||
| 14 | 911401 | Hole Plug | - |
|
- | ||||
| 15 | 911917 | Fastener, Insulation | - |
|
- | ||||
| 16 | SC1002 | Screws,washers & Shield Ass (Replaces: 901303) | - |
|
Immediately | $ 87.61 | |||
| 16 | 910567 | Washer | - |
|
- | ||||
| 16 | 910604 | Screw | - |
|
- | ||||
| 17 | 902009 | Thermostat | - |
|
- | ||||
| 18 | WP4312464 | Screw (Replaces: 911050) | - |
|
$ 6.26 | ||||
| 19 | Y911235 | Bracket, Thermostat | - |
|
- | ||||
| 20 | 910564 | Insulating Bushing | - |
|
- | ||||
| 21 | 911386 | Terminal Compartment | - |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 910647) | - |
|
Immediately | $ 12.62 | |||
| 23 | 911232 | Panel, Toe | - |
|
- | ||||
| 24 | 911221 | Cover, Terminal | - |
|
- | ||||
| 24 | 911766 | Label | - |
|
- | ||||
| 25 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | - |
|
$ 6.98 | ||||
| 26 | 4396672 | Clamp, Cable (Replaces: 400321) | - |
|
Immediately | $ 17.38 | |||
| 27 | 911532 | Strain Relief Grommet | - |
|
- | ||||
| 28 | 910180 | Jam Nut | - |
|
- | ||||
| 29 | M0282009 | Hex. Nut----na (Replaces: Y052679) | - |
|
$ 12.06 | ||||
| 30 | 911406 | Cable Clip | - |
|
- | ||||
| 31 | 910603 | Washer, Heating Element | - |
|
- | ||||
| 32 | 911268 | Fastener | - |
|
- | ||||
| 33 | 900871 | Heating Element | - |
|
- | ||||
| 34 | 911610 | Vent Cover | - |
|
- | ||||
| 35 | WP596669 | Clamp, Spring (Replaces: 911856) | - |
|
Immediately | $ 7.56 | |||
| 36 | 911249 | Injector Hose | - |
|
- | ||||
| 37 | 901265 | Screw And Washer Assembly | - |
|
- |
