Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 805683 Door Spring Appelez-nous -
2 805681 Rh Arm Appelez-nous -
3 803311 Screw Appelez-nous -
4 805884 Spring Pad Appelez-nous -
5 COMM PART Arm Bracket   (Replaces: 806717) Appelez-nous -
6 M0282009 Locknut   (Replaces: 808470) Special Order $ 12.06

7 806967 Screw Appelez-nous -
8 808749 Screw Appelez-nous -
9 807449 Door Guide Appelez-nous -
10 COMM PART Inner Panel   (Replaces: 807194) Appelez-nous -
11 806894 Screw Appelez-nous -
12 807016 Latch Asm Appelez-nous -
13 807450 Switch Cover Appelez-nous -
14 807043 Switch Appelez-nous -
15 806830 Screw Appelez-nous -
16 808618 Screw Appelez-nous -
17 806398 Latch Knob Appelez-nous -
18 809097 Retainer Appelez-nous -
19 807262 Outer Panel Appelez-nous -
20 W11233072 Screw   (Replaces: 803416) In-Stock Immediately $ 12.62

21 808442 Wire Clamp Appelez-nous -
22 807213 Ground Terminal Appelez-nous -
23 805682 Lh Arm Appelez-nous -
24 806810 Screw Appelez-nous -
25 5300809243 Vent Baffle   (Replaces: 809122) Special Order $ 20.25

26 809108 Access Panel Appelez-nous -
27 808404 Panel Insert Appelez-nous -
28 806753 Dispenser Appelez-nous -
29 806757 Plunger Appelez-nous -
30 809109 Bi-metal Asm Appelez-nous -
31 807673 Fill Plug Appelez-nous -
32 807501 Screw Appelez-nous -
33 805631 Grommet Appelez-nous -
34 806863 Screw Appelez-nous -
35 808976 Door Trim Appelez-nous -
36 WP74004005 Screw   (Replaces: 807293) Special Order $ 6.95

37 COMM PART Door Trim   (Replaces: 807347) Appelez-nous -
38 807501 Screw Appelez-nous -
39 808028 Rh Trim Appelez-nous -
40 808027 Bottom Trim Appelez-nous -
41 808346 Acc Pnl Trim Appelez-nous -
42 808029 Lh Trim Appelez-nous -
43 808977 Door Trim Appelez-nous -
44 808956 Thermostat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

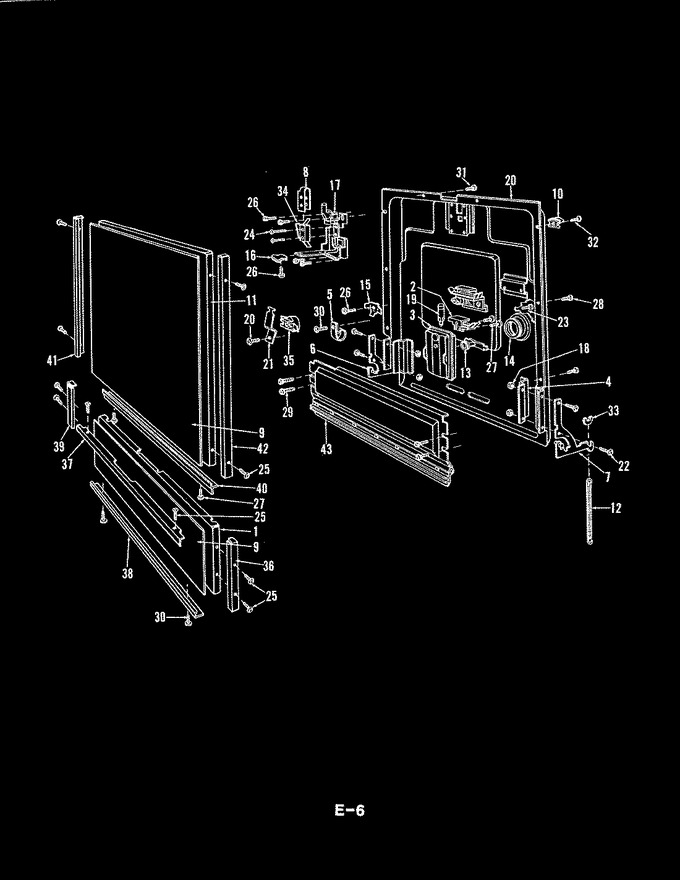

Diagram for DU24D6A
