02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tanks


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts

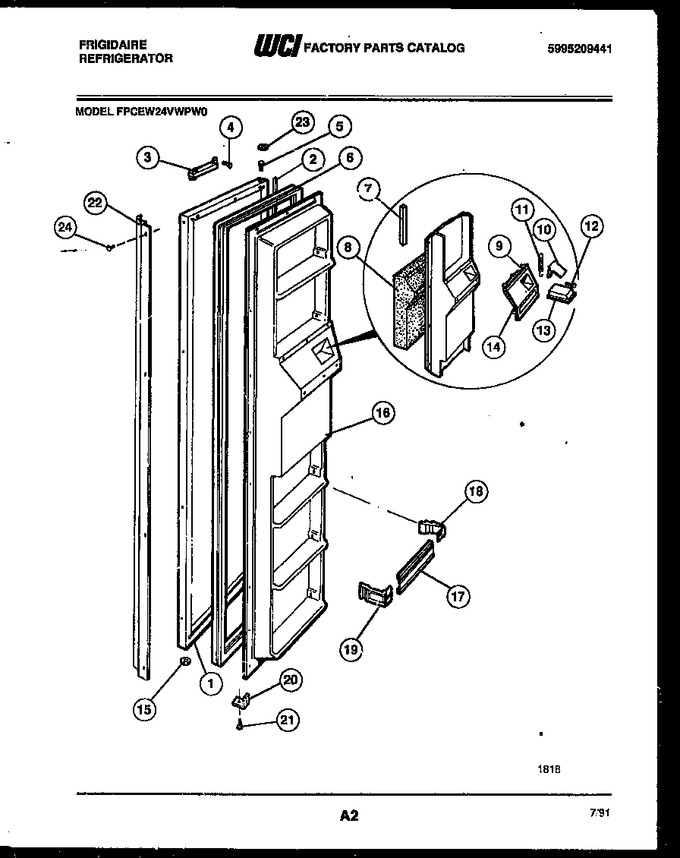

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916630		Freezer Door-white		Appelez-nous	-
2	5303205834		Trim-freezer Door		Appelez-nous	-
3	5303200272		Door Closer		Appelez-nous	-
4	5303001020		Screw-closer Mtg		Appelez-nous	-
5	5303001022		Bearing-upper Hinge		Appelez-nous	-
6	5303206982		Gasket-freezer Dr		Appelez-nous	-
7	5303001046		Shield-wiring		Appelez-nous	-
8	5308017045		Insulation-housing		Appelez-nous	-
9	5303001048		Pin-ice Door Hinge		Appelez-nous	-
10	5303205848		Flipper-ice Door		Appelez-nous	-
11	5308010300		Spring-flipper				$ 36.91
12	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
13	5303211300		Ice Door		Appelez-nous	-
14	5303205851		Trim-cover-dr Pnl		Appelez-nous	-
15	5308010308		Bushing-lwr Hinge		Appelez-nous	-
16	5303015793		Panel-inner Door		Appelez-nous	-
17	5303206709		Door Rack (5)		Appelez-nous	-
18	5303206717		Support Rh (5)				$ 20.42
19	5303206223		Support Lh (5)				$ 77.54
20	5308000790		Bumper, Light Switch				$ 3.86
21	5308002748		Screw		Appelez-nous	-
22	5303273122		Handle-freezer Door-white		Appelez-nous	-
23	5308000186		Washer, Nylon			Immediately	$ 6.02
24	5303272566		Screw-handle-white (4)		Appelez-nous	-
14A	5308017047		Push Nut (6) (non-illustrated)		Appelez-nous	-
16A	5308002748		Screw		Appelez-nous	-
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
