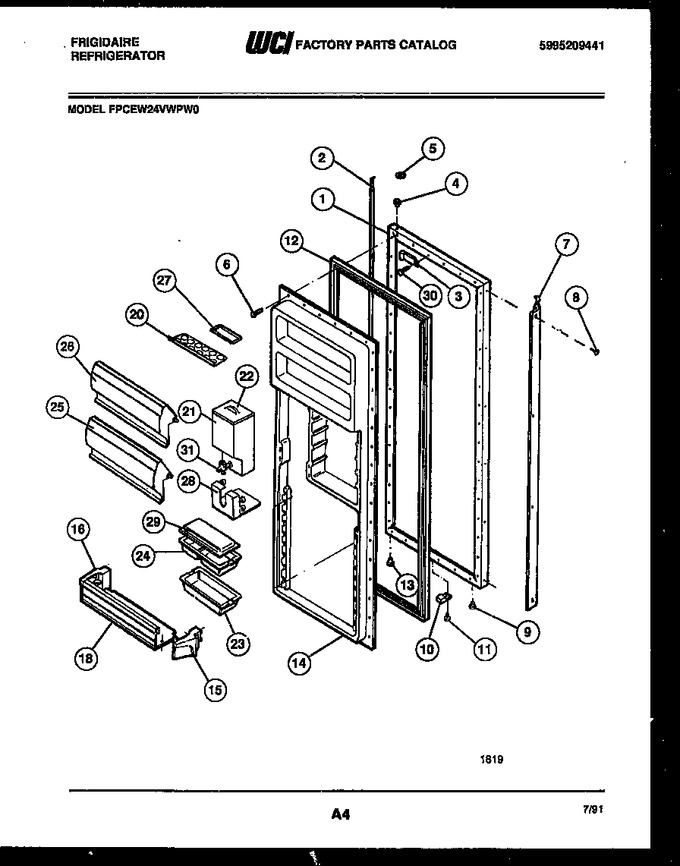

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916629 | Panel-refr, White |
|
- | |||||
| 2 | 5303205834 | Trim-door |
|
- | |||||
| 3 | 5303200272 | Closer-door |
|
- | |||||
| 4 | 5303001022 | Bearing-hinge |
|
- | |||||
| 5 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 6 | 5308002748 | Screw |
|
- | |||||
| 7 | 5303273122 | Handle Assy-door-white |
|
- | |||||
| 8 | 5303272566 | Screw-white (4) |
|
- | |||||
| 9 | 5315230801 | Plug-button |
|
- | |||||
| 10 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 11 | 5308002748 | Screw |
|
- | |||||
| 12 | 5303206905 | Gasket-refr |
|
- | |||||
| 13 | 5308012007 | Bearing-hinge |
|
- | |||||
| 14 | 5303206903 | Panel-inner |
|
- | |||||
| 15 | 5303206680 | Support-shelf Rh (3) |
|
$ 59.06 | |||||
| 16 | 5303206681 | Support-shelf Lh (3) |
|
$ 64.84 | |||||
| 18 | 5303206911 | Shelf-door (3) |
|
- | |||||
| 20 | 5303206924 | Tray-egg |
|
- | |||||
| 21 | 5303207320 | Beverage Center |
|
- | |||||
| 22 | 5303206928 | Cover-bev Center |
|
- | |||||
| 23 | 5303206664 | Dish-microwave Single (2) |
|
- | |||||
| 24 | 5303206665 | Dish-microwave Double |
|
- | |||||
| 25 | 5303206899 | Door-dairy |
|
- | |||||
| 26 | 5303206900 | Door-dairy |
|
- | |||||
| 27 | 5303018743 | Dish, Butter |
|
- | |||||
| 28 | 5303206902 | Shelf-beverage Ctr |
|
- | |||||
| 29 | 5303206666 | Lid-microwave Dish (3) |
|
- | |||||
| 30 | 5303001020 | Screw-door Closure |
|
- | |||||
| 31 | 3205288 | Spigot |
|
- | |||||
| *48318 | 3205289 | Grommet |
|
- | |||||
| *48318 | 3205290 | Nut |
|
- | |||||
| 29A | 5303206904 | Snugger-finger Bottom Shelf (non-illustrated) |
|
- |
