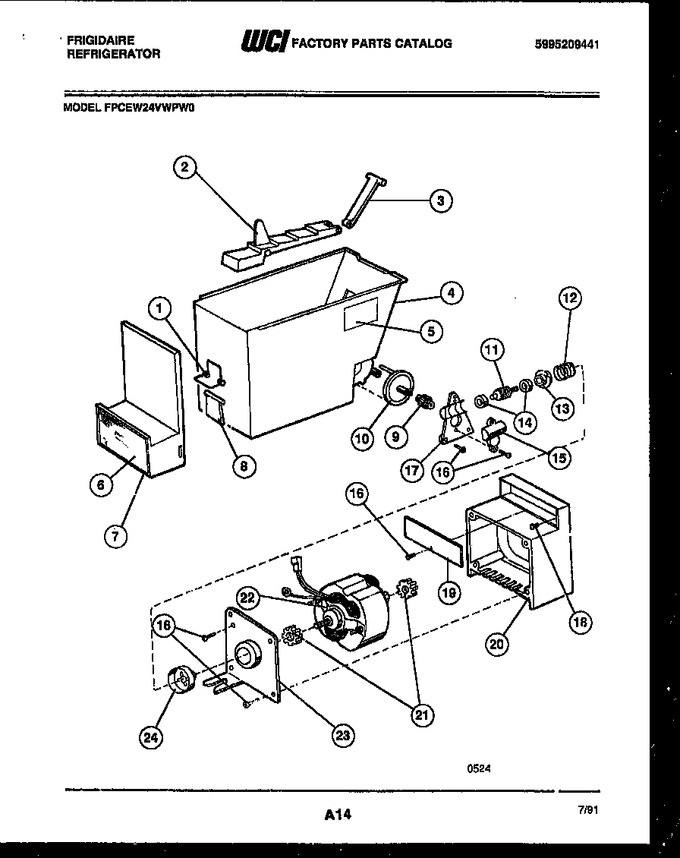

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300184853 | Spring-ice Door |
|
- | |||||
| 2 | 5301123547 | Ram-ice Dispenser |
|
- | |||||
| 3 | 5303205890 | Deflector-ice Disp |
|
- | |||||
| 4 | 5301138760 | Container-ice |
|
- | |||||
| 5 | 5303016895 | Label-ice Disp |
|
- | |||||
| 6 | 5303206959 | Label-ice Container |
|
- | |||||
| 7 | 5303015828 | Front-ice Container |
|
- | |||||
| 8 | 5317440701 | Door-ice Container |
|
- | |||||
| 9 | 5301123566 | Worm Gear-ice Ram |
|
- | |||||
| 10 | 5301123568 | Disc-ice Ram Drive |
|
- | |||||
| 11 | 5301124161 | Worm-ice Ram |
|
- | |||||
| 12 | 5301123767 | Spring-ice Disp Drive |
|
- | |||||
| 13 | 5308017407 | Coupling-ice Disp Container |
|
- | |||||
| 14 | 5301123508 | Bearing-rear (2) |
|
- | |||||
| 15 | 5301123570 | Cover-housing Ice Ram |
|
- | |||||
| 16 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 17 | 5300174408 | Housing-ice Ram Drive |
|
- | |||||
| 18 | 08016566 | Screw |
|
- | |||||
| 19 | 5308010346 | Cover-ice Disp Mtr |
|
- | |||||
| 20 | 5308010343 | Housing-ice Disp Mtg |
|
- | |||||
| 21 | 5301123769 | Grommet-motor (2) |
|
- | |||||
| 22 | 5308017049 | Motor-ice Disp Ram |
|
- | |||||
| 23 | 5303001106 | Bracket-ice Disp Mtr |
|
- | |||||
| 24 | 5301123771 | Coupling-ice Disp Mtr |
|
- |
