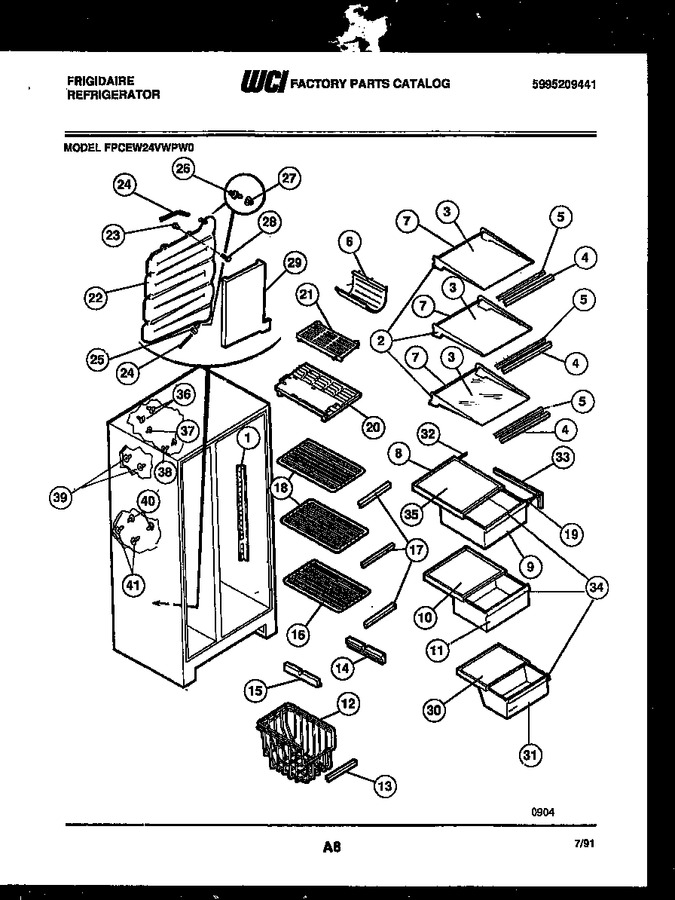

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308002744 | Channel-shelf Rh & Lh |
|
- | |||||
| 2 | 5303209744 | Frame-shelf (3) |
|
- | |||||
| 3 | 5303276725 | Glass-shelf (3) |
|
- | |||||
| 4 | 5303276726 | Trim-shelf-front (3) |
|
- | |||||
| 5 | 5303209742 | Retainer-glass (3) |
|
- | |||||
| 6 | 5303206667 | Wine Rack |
|
- | |||||
| 7 | 5303209981 | Trim-shelf Rear (3) |
|
- | |||||
| 8 | 5303206938 | Cover-crisper, Upper |
|
- | |||||
| 9 | 5303206945 | Pan-crisper, Upper |
|
- | |||||
| 10 | 5308009642 | Cover-crisper-middle |
|
$ 163.55 | |||||
| 11 | 5303206926 | Pan-crisper, Middle |
|
- | |||||
| 12 | 5303206947 | Basket-freezer, Top |
|
- | |||||
| 13 | 5303015817 | Trim-baskets (3) |
|
- | |||||
| 14 | 5303001098 | Hanger-basket Rh (3) |
|
- | |||||
| 15 | 5303001099 | Hanger-basket Lh (3) |
|
- | |||||
| 16 | 08001031 | Shelf - Freezer |
|
- | |||||
| 17 | 5303276724 | Trim-freezer Shelf (3) |
|
- | |||||
| 18 | 08001032 | Shelf-freezer (2) |
|
- | |||||
| 19 | 5308010253 | Screw (6) |
|
- | |||||
| 20 | 5303001104 | Shelf-freezer-lower |
|
- | |||||
| 21 | 5303001152 | Shelf-freezer (upper) |
|
- | |||||
| 22 | R000900930 | Tank-water |
|
- | |||||
| 23 | 5303001185 | Support-tank (3) |
|
- | |||||
| 24 | 5318582501 | Tube-cut To Size (2) |
|
- | |||||
| 25 | 5303208142 | Clamp-tube |
|
- | |||||
| 26 | 5308015614 | Connector-tube (2) |
|
$ 34.57 | |||||
| 27 | 5300186057 | Grommet-tank (2) |
|
$ 28.98 | |||||
| 28 | 5308007097 | Screw (3) |
|
- | |||||
| 29 | 5308010332 | Cover-water Tank |
|
- | |||||
| 30 | 5316972401 | Cover-crisper-lower |
|
- | |||||
| 31 | 5303206940 | Pan-crisper, Lower |
|
- | |||||
| 32 | 5308009648 | Gasket-cover |
|
- | |||||
| 33 | 5303201640 | Support-cover Rh |
|
- | |||||
| 34 | 5303206927 | Trim-pan (3) |
|
- | |||||
| 35 | 5303206939 | Glass-upper Crisper |
|
- | |||||
| 36 | 5308010367 | Sprt-spec Barrel-frzer Light Shield (2) |
|
- | |||||
| 37 | 5303001211 | Sprt-spec Screw Mtg-im Divider (2) |
|
- | |||||
| 38 | 3001212 | Screw-divider Supt (2) |
|
- | |||||
| 39 | 5303001291 | Sprt-ice Maker (2) |
|
- | |||||
| 40 | 5303001290 | Screw-shelf Support |
|
- | |||||
| 41 | 5308000244 | Support-shelf (2) |
|
- | |||||
| 10A | 5303205880 | Gasket-crisper Cover (non-illustrated) |
|
- | |||||
| 12A | 5308001015 | Basket-frzr (2) Middle & Lower |
|
- | |||||
| 15A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 20A | 08010342 | Label-lower Shell (non-illustrated) |
|
- | |||||
| 21A | 08010356 | Label-upper Shelf (non-illustrated) |
|
- | |||||
| 32A | 3204600 | Trim-cover Upper (non-illustrated) |
|
- | |||||
| 33A | 5303201639 | Support-cover Lh (non-illustrated) |
|
$ 69.09 | |||||
| 33B | 5304509705 | Grommet-shelf (6) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 35A | 5303206670 | Control-humidity (non-illustrated) |
|
- | |||||
| 39A | 5303001292 | Screw-support (2) (non-illustrated) |
|
- |
