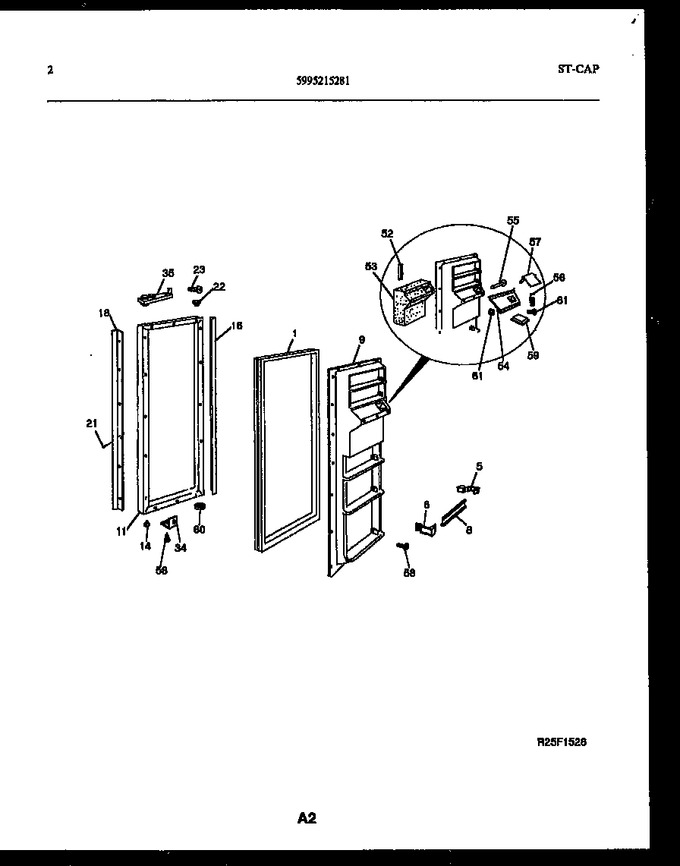

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206982 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 5 | 5303206717 | Support-door Rack, Rh, (5) |
|
$ 20.42 | |||||
| 6 | 5303206223 | Support-door Rack, Lh, (5) |
|
$ 77.54 | |||||
| 8 | 5303206709 | Rack-door, (5) |
|
- | |||||
| 9 | 5303015793 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 5303916630 | Panel-frzr Door, Smooth, White |
|
- | |||||
| 14 | 5315230801 | Plug-button, Refr/fzr Door |
|
- | |||||
| 16 | 5303275365 | Trim-door |
|
- | |||||
| 18 | 5303273122 | Handle-door, Full-length, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 22 | 5303001022 | Bearing-hinge Upper |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 34 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 35 | 5303200272 | Closer-door |
|
- | |||||
| 52 | 5303001046 | Shield-wiring |
|
- | |||||
| 53 | 5308017045 | Insulation-housing |
|
- | |||||
| 54 | 5303205851 | Cover-door Pnl Trim |
|
- | |||||
| 55 | 5303001048 | Pin-ice Door Hinge |
|
- | |||||
| 56 | 5308010300 | Spring-flipper Retainer |
|
$ 36.91 | |||||
| 57 | 5303205848 | Flipper-ice Door |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 5303211300 | Ice Door Assy |
|
- | |||||
| 60 | 5308010308 | Bushing-door |
|
- | |||||
| 61 | 5308017047 | Nut, Self-threading, 1/8 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *56754 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- |
