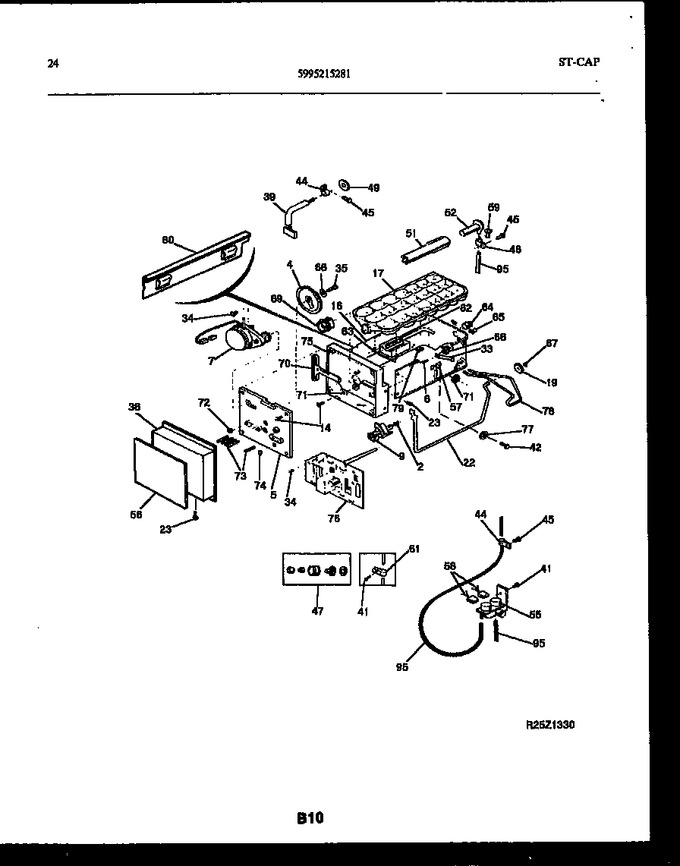

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 70 | 5303001136 | Rack-gear |
|
- | |||||
| 71 | 5301124979 | Washer-flat (2) |
|
- | |||||
| 72 | 5303001118 | Nut, Hex-lh Thread, 10-32 |
|
- | |||||
| 73 | 5301124987 | Follower Pin-cam (5) |
|
- | |||||
| 74 | 5308010348 | Retainer Ring-cam |
|
- | |||||
| 75 | 5303001143 | Housing-mechanism |
|
- | |||||
| 76 | 5308011238 | Pc Board |
|
- | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 78 | 5301138222 | Shut-off Wire |
|
- | |||||
| 79 | 5303001125 | Retainer-wire (2) |
|
- | |||||
| 80 | 5300175135 | Extension-frame |
|
- | |||||
| 95 | 5318582501 | Tube-water Inlet, 93``, Plastic, Cut To Size |
|
- | |||||
| *56778 | 5303207333 | Holder-tube |
|
- |
