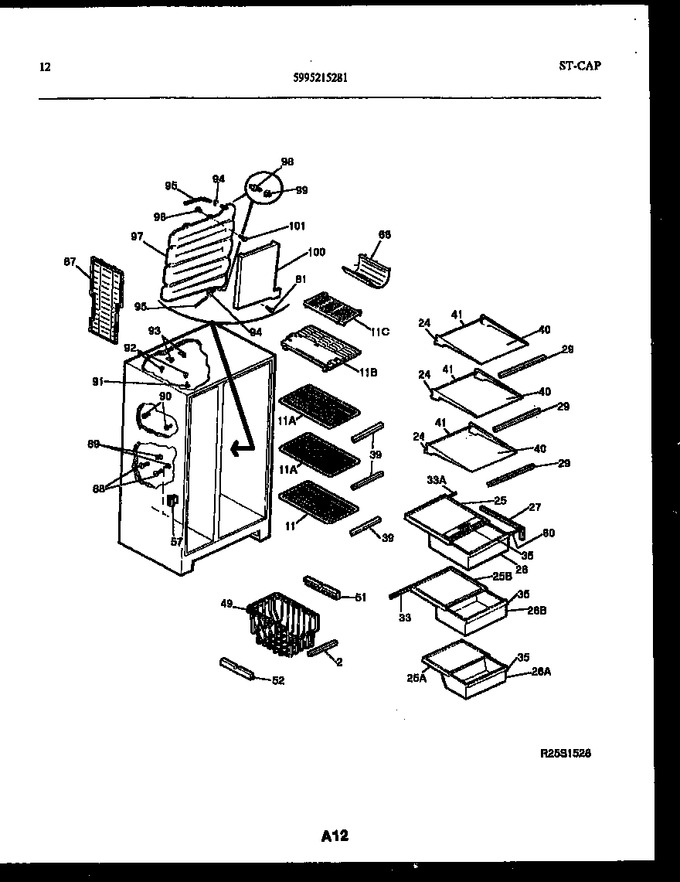

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - Refrigerator Control Assembly, Damp


09 - System And Automatic Defrost Parts


10 - Ice Door, Dispenser And Water Tanks


11 - Ice Dispenser


12 - Ice Maker And Installation Parts


13 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
90	5303001291		Support-ice Maker (2)		Appelez-nous	-
91	3001212		Screw-divider Supt, Cr Spec Pan Hd, 8-15(a) X 1-5/8, (2		Appelez-nous	-
92	5303001211		Support-spec Screw Mtg, Im Divider, (2)		Appelez-nous	-
93	5308010367		Support, Special Barrel, Frzr Light Shld, (2)		Appelez-nous	-
94	5303204887		Clamp-tube (2)		Appelez-nous	-
95	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
96	5303001185		Support-water Tank		Appelez-nous	-
97	5303917026		Water Tank Assy, Includes Tank, 2-grommets, 2-connectors		Appelez-nous	-
98	5308015614		Connector-tube (2)				$ 34.57
99	5300186057		Grommet-tank (2)				$ 28.98
100	5308010332		Cover-water Tank		Appelez-nous	-
101	5308007097		Screw-water Tank Mtg, Cr Truss Head, 8(a) X 3/4, (3)		Appelez-nous	-
*56765	5308008251		Clip-crisper Cover, Lh				$ 42.94
*56765	5308008250		Clip-crisper Cover, Rh		Appelez-nous	-
*56765	5300170910		Clip-cantilever Shlf				$ 2.60
90A	5303001292		Screw-ice Maker Supt, Cr Flat Head, 8(ab) X 1-3/4, (2)(non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
