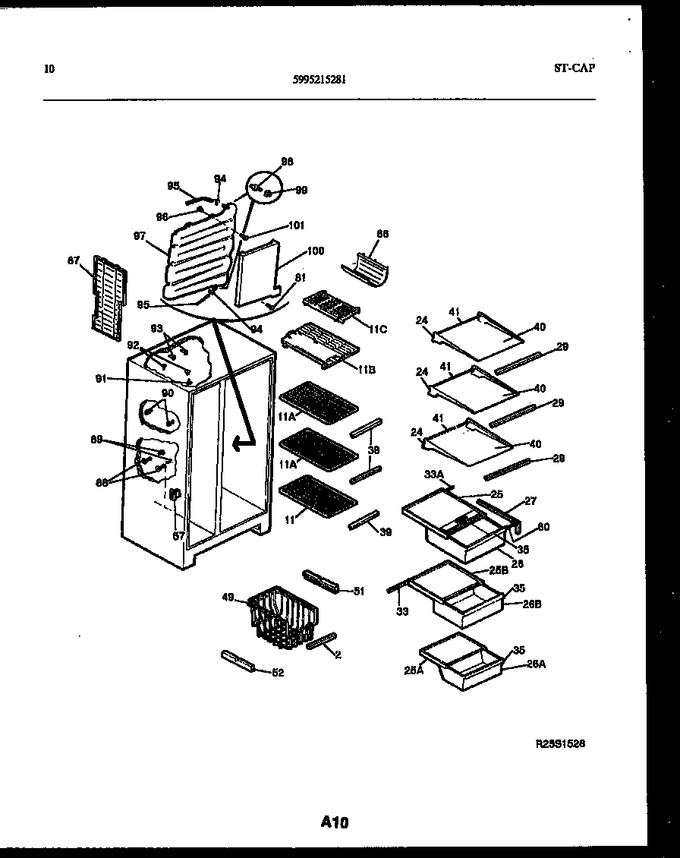

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303015817 | Trim-basket, (3) |
|
- | |||||
| 11 | 08001031 | Shelf - Freezer |
|
- | |||||
| 24 | 5303209744 | Frame-refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 5303206938 | Cover-crisper Pan, Upper |
|
- | |||||
| 26 | 5303206945 | Pan-storage, Upper |
|
- | |||||
| 27 | 5303201640 | Support-crisper Cvr, Rh |
|
- | |||||
| 29 | 5303276726 | Trim-refr Shelf, (3) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 35 | 5303206927 | Trim-storage Pan, (3) |
|
- | |||||
| 39 | 5303276724 | Trim-frzr Shelf, (3) |
|
- | |||||
| 40 | 5303276725 | Shelf-glass, Refr Shelf, (3) |
|
- | |||||
| 41 | 5303209981 | Trim-refr Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 49 | 5308001015 | Basket-sliding, Lower & Middle |
|
- | |||||
| 49 | 5303206947 | Basket-sliding, Upper |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 66 | 5303206667 | Rack-wine |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 87 | 5308010353 | Divider-icemaker |
|
- | |||||
| 88 | 5308000244 | Support-frzr Shelf |
|
- | |||||
| 89 | 5303001290 | Screw-shelf Support, Cr Flat Head, 8(ab) X 1-3/8 |
|
- | |||||
| 11A | 08010342 | Label-lwr Frzr Shelf (non-illustrated) |
|
- | |||||
| 11A | 08001032 | Shelf-freezer (2) |
|
- | |||||
| 11B | 5303001104 | Shelf-freezer, Plastic, Lower |
|
- | |||||
| 11B | 08010356 | Label-upr Frzr Shelf (non-illustrated) |
|
- | |||||
| 11C | 5303001152 | Shelf-freezer, Plastic, Upper |
|
- | |||||
| 25A | 5316972401 | Cover-crisper Pan, Lower |
|
- | |||||
| 25A | 5303206939 | Shelf-glass, Crisper Cover (non-illustrated) |
|
- | |||||
| 25B | 5308009642 | Cover-crisper Pan, Middle |
|
$ 163.55 | |||||
| 25B | 5303206670 | Control-humidity (non-illustrated) |
|
- | |||||
| 25C | 3204600 | Trim-crisper Cover, Upper (non-illustrated) |
|
- | |||||
| 26A | 5303206940 | Pan-storage, Lower |
|
- | |||||
| 26B | 5303206926 | Pan-storage, Middle |
|
- | |||||
| 27A | 5303201639 | Support-crisper Cvr, Lh (non-illustrated) |
|
$ 69.09 | |||||
| 29A | 5303209742 | Retainer-glass (3) (non-illustrated) |
|
- | |||||
| 33A | 5308009648 | Gasket-crisper Cover |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- |
