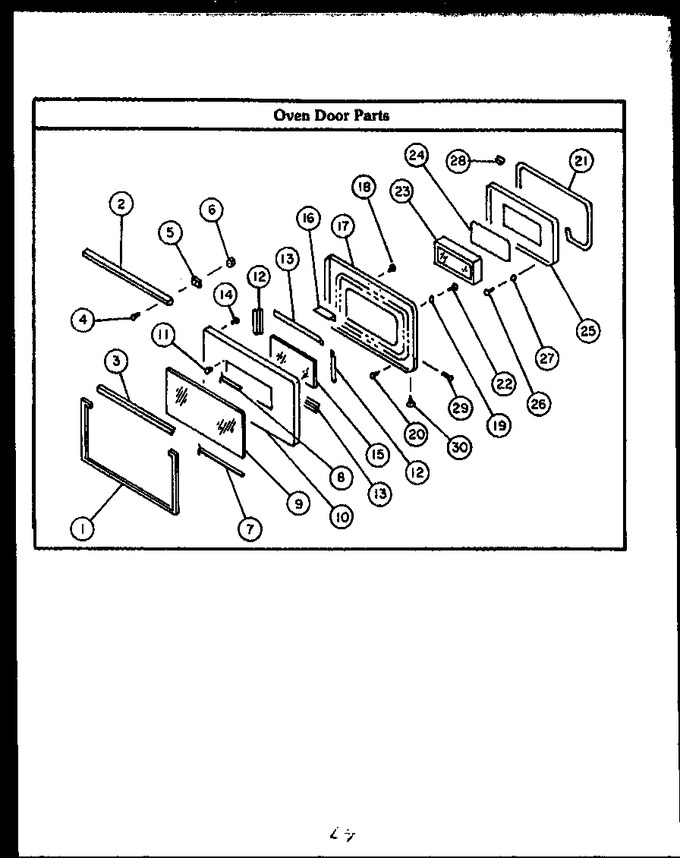

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-02696A		Trim, Frame   (Replaces: 66915)			Immediately	$ 95.32
2	70181		Handle, Oven Door   (Replaces: 68150)			Immediately	$ 89.99
3	70591		Trim, Handle Spacer		Appelez-nous	-
4	Y67998		Screw, Handle		Appelez-nous	-
5	79978		Spacer		Appelez-nous	-
6	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
7	66914		Bumper, Glass - Bottom Trim				$ 5.78
8	68115		Bumper, Glass - Top Trim				$ 93.49
9	Y66147		Panel - Black Glass		Appelez-nous	-
10	Y66150		Outer Panel, Oven Door		Appelez-nous	-
11	Y0093312		Pop Rivet, Black		Appelez-nous	-
12	Y66180		Glass Channel-short		Appelez-nous	-
13	Y66181		Glass Channel-long		Appelez-nous	-
14	Y0097821		Rivet, Pop		Appelez-nous	-
15	DE81-06811A		Glass, Heat Barrier   (Replaces: 66179)				$ 38.04
16	Y91530		Plate Latch		Appelez-nous	-
17	Y66145		Backer, Oven Door		Appelez-nous	-
18	Y0096343		Pop Rivet		Appelez-nous	-
19	Y0091604		Washer		Appelez-nous	-
20	77652		Capacitor		Appelez-nous	-
21	1N4004		Gasket Assembly   (Replaces: 71637)		Appelez-nous	-
22	Y71914		Screw, S.m.		Appelez-nous	-
23	66169		Window Assembly				$ 374.79
24	DE81-10110A		Gasket, Window Assembly   (Replaces: 66171)				$ 118.85
25	LS2-225		Sub Backer, Oven Door   (Replaces: 66142)			Immediately	$ 12.18
26	Y0092373		Screw, No.6-20 X .375 Panhd(blk)		Appelez-nous	-
27	Y97977		Washer, Window To Sub-backer		Appelez-nous	-
28	Y68429		Speed Clip		Appelez-nous	-
29	0091632		Rivet		Appelez-nous	-
30	76029		Screw		Appelez-nous	-
