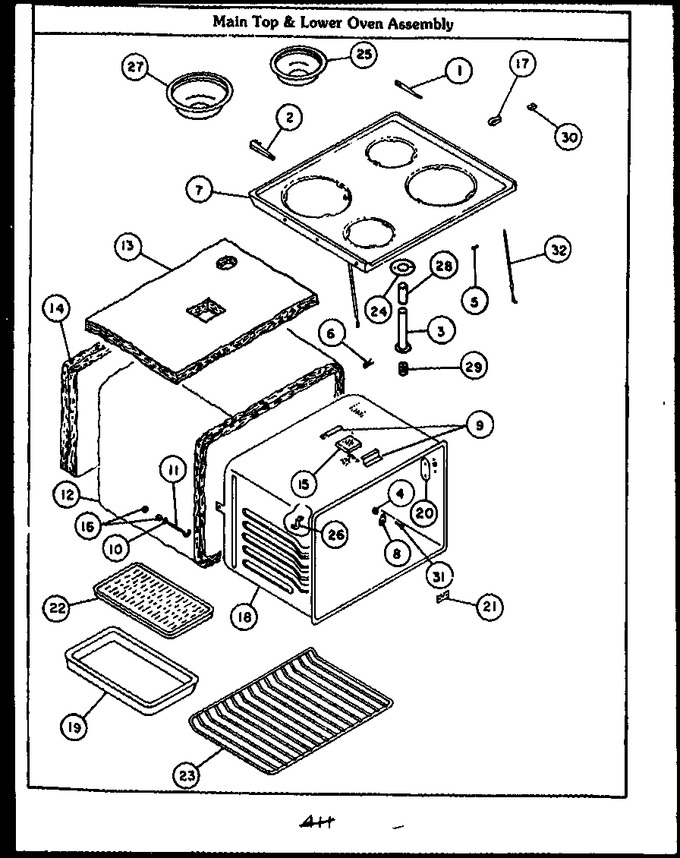

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0091517 | Bracket Assembly |
|
- | |||||
| 2 | 0091518 | Bracket Assembly |
|
- | |||||
| 3 | Y91504 | Tube, Oven Vent |
|
- | |||||
| 4 | M0282009 | Nut, 10-24 Hex Keps (Replaces: Y0097904) |
|
$ 12.06 | |||||
| 5 | Y71668 | Hair Pin Clip |
|
- | |||||
| 6 | Y71890 | Cotter Pin |
|
- | |||||
| 7 | 71077V | Main Top - Avocado |
|
- | |||||
| 7 | 71077F | Main Top, Snow White |
|
- | |||||
| 7 | 71077D | Main Top, Gold |
|
- | |||||
| 7 | 71077N | Main Top, Almond |
|
- | |||||
| 7 | 71077C | Main Top - Coffee |
|
- | |||||
| 8 | 79758 | Cover Plate |
|
- | |||||
| 9 | 67972 | Clip, Lens |
|
Immediately | $ 10.80 | ||||
| 10 | Y71876 | Washer |
|
- | |||||
| 11 | Y0091536 | Hook Bolt |
|
- | |||||
| 12 | 66955 | Insulation, Oven Wrap |
|
- | |||||
| 13 | 66956 | Insulation, Oven Top |
|
- | |||||
| 14 | Y0091356 | Sub 41966, Insulation |
|
- | |||||
| 15 | 67985 | Lens, Oven Light |
|
- | |||||
| 16 | Y71881 | Nut, Hex 10-32 |
|
- | |||||
| 17 | 71203 | Wire Clamp |
|
- | |||||
| 18 | 66984-3 | Oven Shell, Gray |
|
- | |||||
| 19 | 11161-3 | Sub 11161cg, Broiler Pan |
|
- | |||||
| 20 | 71204 | Retainer Plate |
|
- | |||||
| 21 | Y0091339 | Plate |
|
- | |||||
| 22 | 4396923 | Broiler Grid (Replaces: Y0098682) |
|
Immediately | $ 52.04 | ||||
| 23 | WP314763J | Oven Rack - Regular (Replaces: 67810) |
|
$ 70.11 | |||||
| 24 | 67965 | Retainer, Oven Vent |
|
$ 2.86 | |||||
| 25 | Y64677 | Burner Bowl 6`` |
|
- | |||||
| 26 | Y0091546 | Support |
|
- | |||||
| 27 | WPW10196405 | Burner Bowl 8`` (Replaces: 64676) |
|
Immediately | $ 15.56 | ||||
| 28 | 91313 | Shield, Vent Tube |
|
- | |||||
| 29 | Y0091503 | Smoke Eliminator |
|
- | |||||
| 30 | Y0096604 | Nut, Type ``u`` |
|
- | |||||
| 31 | 79431 | Screw, Shoulder |
|
- | |||||
| 32 | Y0091542 | Support, Maintop |
|
- |
