Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 63943 Timer Appelez-nous -
2 69423 Lower Oven Thermostat Appelez-nous -
3 71745 Switch, Infinite Appelez-nous -
4 Y71820 Indicator Light Appelez-nous -
5 Y63997 Switch, Oven Light Appelez-nous -
6 Y71891 Receptacle, Disconnect Appelez-nous -
7 65208 Hood Outlet Guide Appelez-nous -
8 Y71955 Indicator Light Appelez-nous -
9 71925 Socket Assembly, Flourescent L Appelez-nous -
10 Y71927 Lamp, Flourescent Appelez-nous -
11 71920 Starter Appelez-nous -
12 Y71964 Socket Starter Appelez-nous -
13 Y71902 Plug, Disconnect Appelez-nous -
14 Y67302 Connector Housing, 4-circuit Appelez-nous -
15 1N4004 Outlet, Motor   (Replaces: 73027) Appelez-nous -
16 0091394 Terminal Block Appelez-nous -
17 Y71770 Receptacle, Disconnect Appelez-nous -
18 Y71769 Plug, Disconnect Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

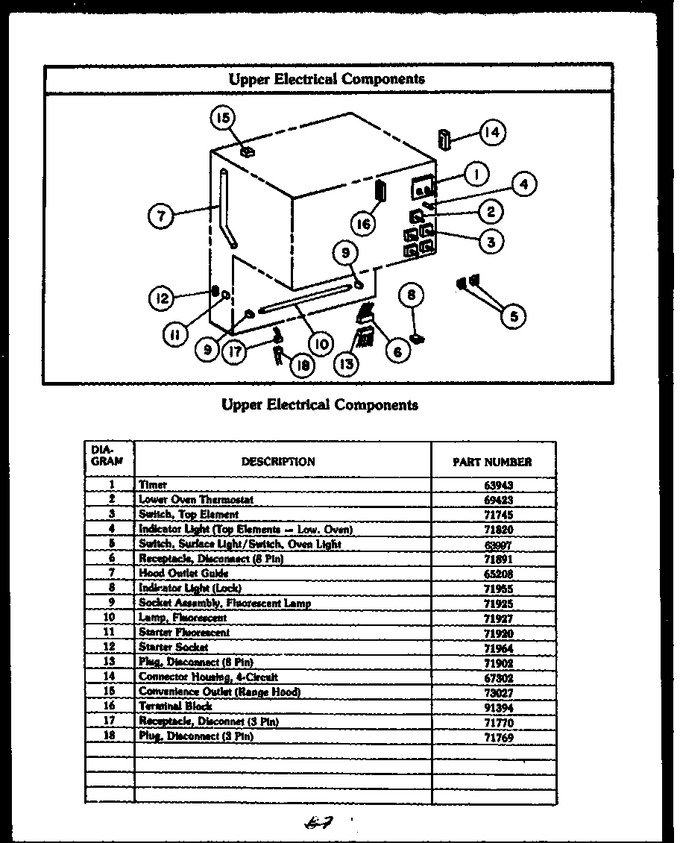

Diagram for EKS395
