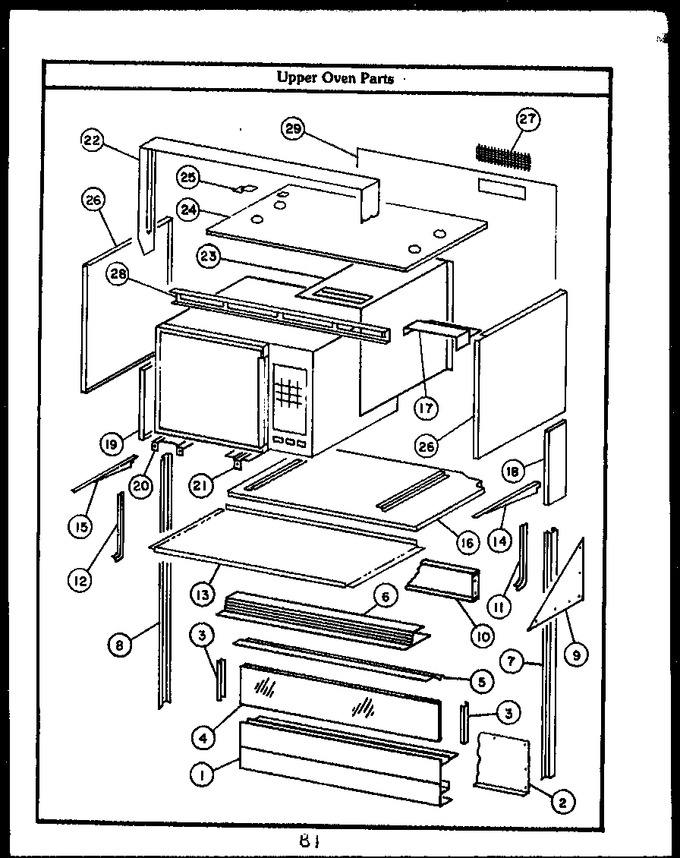

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y71781		Lower Trim, Splashplate		Appelez-nous	-
2	Y71705		Wire Cover		Appelez-nous	-
3	Y71954		Trim, Splashplate		Appelez-nous	-
4	Y71968		Glass, Splashplate		Appelez-nous	-
5	Y71971		Rear Trim		Appelez-nous	-
6	Y64184		Decorative Trim, Lower		Appelez-nous	-
7	69401		Support Channel, R.h.		Appelez-nous	-
8	69402		Support Channel, L.h.		Appelez-nous	-
9	69677		Brace, Shelf - R.h.			Immediately	$ 4.33
10	71064		Panel, Surface Light			Immediately	$ 26.00
11	Y0091477		Trim Support		Appelez-nous	-
12	Y0091478		Trim Support		Appelez-nous	-
13	Y64177		Jacket Bottom, Gray		Appelez-nous	-
14	Y71972		Trim Strip, R.h.		Appelez-nous	-
15	Y71973		Trim Strip, L.h.		Appelez-nous	-
16	Y64179		Shelf, Upper Oven		Appelez-nous	-
17	63933		Cover, Microwave Vent		Appelez-nous	-
18	69437F		End Panel, - Middle R.h., Snow		Appelez-nous	-
18	69437C		End Panel, - Middle R.h., Dark		Appelez-nous	-
18	69437D		End Panel, - Middle R.h., Gold		Appelez-nous	-
18	69437N		End Panel, - Middle R.h., Almo		Appelez-nous	-
18	69437V		End Panel, - Middle R.h., Avoc		Appelez-nous	-
19	69436D		End Panel, - Middle L.h., Gold		Appelez-nous	-
19	69436V		End Panel, - Middle L.h., Avoc		Appelez-nous	-
19	69436C		End Panel, - Middle L.h., Dark		Appelez-nous	-
19	69436N		End Panel, - Middle L.h., Almo		Appelez-nous	-
19	69436F		End Panel, - Middle L.h., Snow		Appelez-nous	-
20	Y64182		Mounting Channel, Left		Appelez-nous	-
21	Y64183		Mounting Channel, Right		Appelez-nous	-
22	Y64185		Trim Frame, Outer		Appelez-nous	-
23	63934		Oven Top		Appelez-nous	-
24	Y64181		Jacket Top		Appelez-nous	-
25	73060		Oven Vent			Immediately	$ 24.25
26	64180N		Jacket End-, Almond		Appelez-nous	-
26	64180F		Jacket End-, Snow White		Appelez-nous	-
26	64180C		Jacket End-, Dark Copper		Appelez-nous	-
26	64180D		Jacket End-, Gold		Appelez-nous	-
26	64180V		Jacket End-, Avocado		Appelez-nous	-
27	Y64173		Screen, Air Inlet		Appelez-nous	-
28	Y64186		Channel, Vent		Appelez-nous	-
29	64174		Backplate		Appelez-nous	-
NI	69185		Label, Warning				$ 48.20

    View Diagram in Separate Window       Print Part List
