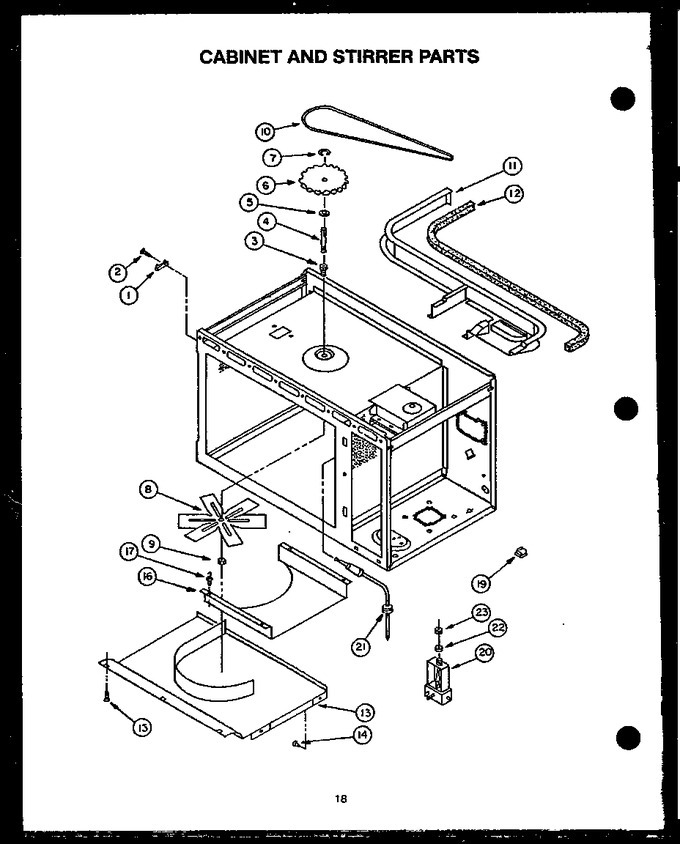

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0055278 | Fuse, Thermal |
|
- | |||||
| 2 | 0055232 | Screw |
|
- | |||||
| 3 | 0055224 | Bushing, Stirrer |
|
- | |||||
| 4 | 0055226 | Shaft, Stirrer |
|
- | |||||
| 5 | Y0055225 | Washer, Stirrer |
|
- | |||||
| 6 | 0055221 | Pulley, Stirrer Blade |
|
- | |||||
| 7 | 0055223 | E Ring |
|
- | |||||
| 8 | 0055254 | Stirrer Blade |
|
- | |||||
| 9 | WP487939 | Nut K (Replaces: Y0055215) |
|
$ 6.95 | |||||
| 10 | Y0055259 | Belt, Drive |
|
- | |||||
| 11 | 0055316 | Air Baffle |
|
- | |||||
| 12 | 0055268 | Seal, Foam |
|
- | |||||
| 13 | Y0055313 | Cover, Stirrer |
|
- | |||||
| 14 | Y0312771 | Fastener |
|
- | |||||
| 15 | 0055273 | Screw |
|
- | |||||
| 16 | 0055264 | Plate, Tuning |
|
- | |||||
| 17 | 0055265 | Support |
|
- | |||||
| 19 | 0055208 | Cable Clip |
|
- | |||||
| 20 | 0055298 | Jack, Probe |
|
- | |||||
| 21 | 0059976 | Meat Probe |
|
- | |||||
| 22 | Y0055237 | Washer |
|
- | |||||
| 23 | Y0055236 | Nut |
|
- | |||||
| NI | Y0312771 | Fastener |
|
- |
