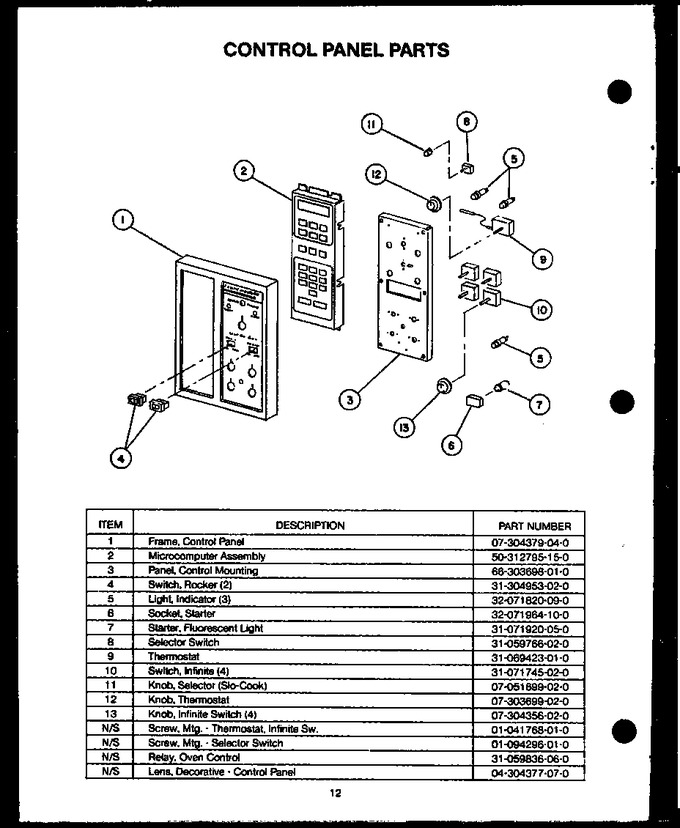

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0304379 | Frame Control Panel |
|
- | |||||
| 2 | 0312795 | Net-microcomputer |
|
- | |||||
| 3 | Y0303698 | Mtg. Brk.- Control Panel |
|
- | |||||
| 4 | Y0304953 | Switch, Rocker |
|
- | |||||
| 5 | Y0071820 | Indicator Light |
|
- | |||||
| 6 | 0071964 | Socket, Starter |
|
- | |||||
| 7 | 0071920 | Starter, Flourescent |
|
- | |||||
| 8 | 0059766 | Selector Switch |
|
- | |||||
| 9 | 0069423 | X Thermostat, Lower Oven |
|
- | |||||
| 10 | 0071745 | Switch, Infinite |
|
- | |||||
| 11 | 0051699 | Knob Slow Cook |
|
- | |||||
| 12 | Y0303699 | Knob T-stat |
|
- | |||||
| 13 | 0304356 | Knob Top Elements |
|
- | |||||
| NI | 0304377 | Lens Decorative |
|
- | |||||
| NI | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| NI | 0059836 | Relay |
|
- | |||||
| NI | Y0094296 | Screw 6x3/8 Phil Flt Hd |
|
- |
