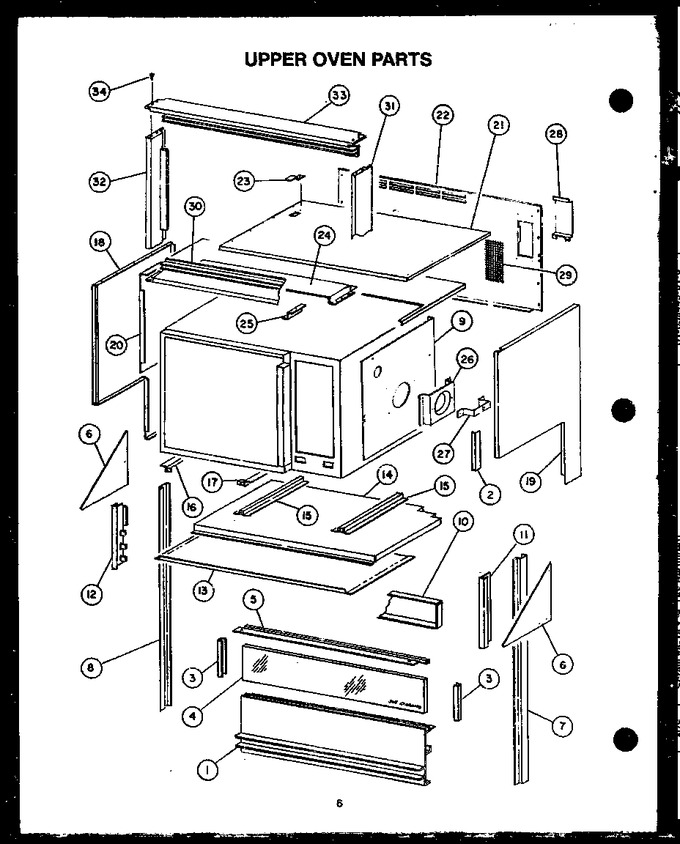

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 303681L | Trim, Lwr Plte W/light |
|
- | |||||
| 1 | 303681W | Trim, Lwr Plte W/light |
|
- | |||||
| 2 | Y0059770 | Brace, Control Panel |
|
- | |||||
| 3 | Y0303647 | Trim Glass Channel |
|
- | |||||
| 4 | 0303680 | Glass Splashplate |
|
- | |||||
| 5 | 0062230 | Trim, Rear |
|
- | |||||
| 6 | Y0300636 | Brace, Up Oven Shelf |
|
- | |||||
| 7 | Y0300414 | Support Right |
|
- | |||||
| 8 | 0300413 | Support Left |
|
- | |||||
| 9 | Y0059896 | Cover, Rh |
|
- | |||||
| 10 | 0304537 | Panel Surface Light |
|
- | |||||
| 11 | Y0303693 | Trim Support Lower Rh |
|
- | |||||
| 12 | Y0303694 | Trim Support Lower Lh |
|
- | |||||
| 13 | W10125480 | Jacket Bottom |
|
- | |||||
| 14 | Y0059894 | Shelf |
|
- | |||||
| 15 | Y0059895 | Support-micro Runner |
|
- | |||||
| 16 | 0059907 | Runner, Micro, Left |
|
- | |||||
| 17 | 0059908 | Runner, Micro, Right |
|
- | |||||
| 18 | 303644L | Side Panel Lh |
|
- | |||||
| 18 | 303644W | Side Panel Lh |
|
- | |||||
| 19 | 303643W | Side Panel Rh |
|
- | |||||
| 19 | 303643L | Side Panel Rh |
|
- | |||||
| 20 | Y0304606 | Baffle, Microwave |
|
- | |||||
| 21 | Y0059864 | Jacket Top |
|
- | |||||
| 22 | Y0303782 | Wire Cover Rear |
|
- | |||||
| 23 | Y0073060 | Receptacle Cover |
|
- | |||||
| 24 | W10125475 | Cap, Baffle |
|
- | |||||
| 25 | W10125472 | Separator, Baffle |
|
- | |||||
| 26 | Y0062143 | Mtg. Bracket, Fan |
|
- | |||||
| 27 | 0062140 | Bracket, Motor Mount |
|
- | |||||
| 28 | Y0059866 | Baffle, Rear Cover |
|
- | |||||
| 29 | Y0059867 | Screen, Air Inlet |
|
- | |||||
| 30 | Y0304366 | Bottom Trim Upper Ov Frame |
|
- | |||||
| 31 | 0304368 | Right Side Trim Upper Frame |
|
- | |||||
| 32 | Y0304369 | Left Side Trim Upper Frame |
|
- | |||||
| 33 | 0304367 | Top Trim Upper Ov Frame |
|
- | |||||
| 34 | Y0041807 | Screw No.8abx1/4 Ph Hd |
|
- |
