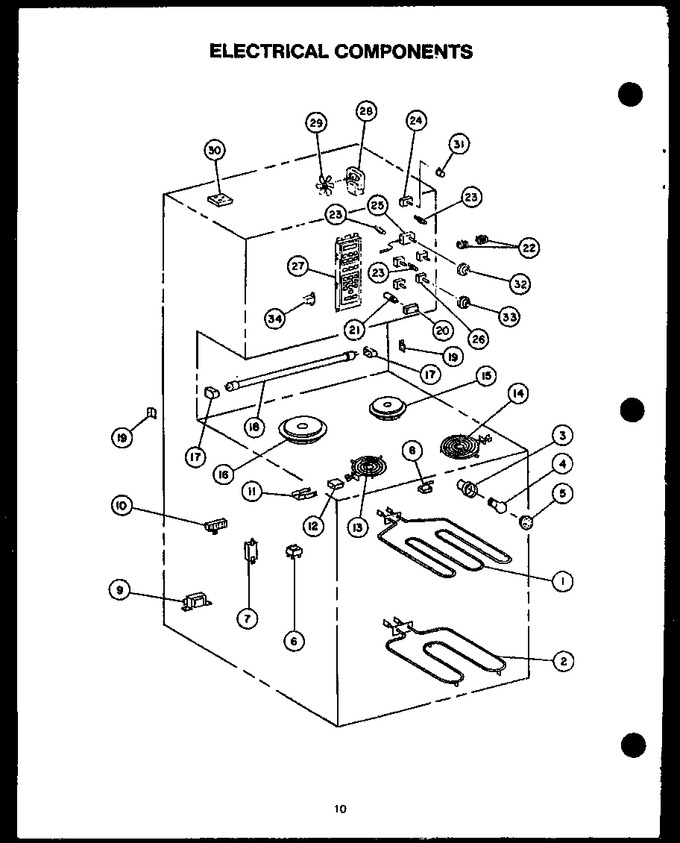

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
2	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
3	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
4	Y0042175		Bulb, Light		Appelez-nous	-
5	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
6	Y0061389		Infinite Switch		Appelez-nous	-
7	X091669		Pkg 36 Relay		Appelez-nous	-
8	Y0065780		Switch, Clean Circuit				$ 11.77
9	Y0071869		Ballast		Appelez-nous	-
10	0042185		Term Blk 1m-min		Appelez-nous	-
11	Y0302765		Mounting Brkt. Plug Block		Appelez-nous	-
12	330031		Sub 89336 Term Block Kit   (Replaces: Y0071930)			Immediately	$ 14.48
13	WPW10259868		Element, 4 Turn 1500w 6``   (Replaces: Y0051576)			Immediately	$ 112.28
14	WPW10259865		Element, 5 Turn 2600w 8``   (Replaces: Y0304871)			Immediately	$ 105.92
15	0060600		Element Assy; Sm W/black X		Appelez-nous	-
16	Y0060606		Element, Solid Disc, 8``		Appelez-nous	-
17	Y0071924		Light Socket		Appelez-nous	-
18	WP95292		Lamp, Fluorescent   (Replaces: Y0071927)			Immediately	$ 121.45
19	Y0071265		Bracket, Socket, Fl. Lite		Appelez-nous	-
20	0071964		Socket, Starter		Appelez-nous	-
21	0071920		Starter, Flourescent		Appelez-nous	-
22	Y0304953		Switch, Rocker		Appelez-nous	-
23	Y0071820		Indicator Light		Appelez-nous	-
24	0059766		Selector Switch		Appelez-nous	-
25	0069423		X Thermostat, Lower Oven		Appelez-nous	-
26	0071745		Switch, Infinite		Appelez-nous	-
27	0312795		Net-microcomputer		Appelez-nous	-
28	Y0042226		Fan Motor		Appelez-nous	-
29	Y0042754		Blade, Fan		Appelez-nous	-
30	0059447		Convenience Outlet		Appelez-nous	-
31	0051699		Knob Slow Cook		Appelez-nous	-
32	Y0303699		Knob T-stat		Appelez-nous	-
33	0304356		Knob Top Elements		Appelez-nous	-
34	0059836		Relay		Appelez-nous	-
