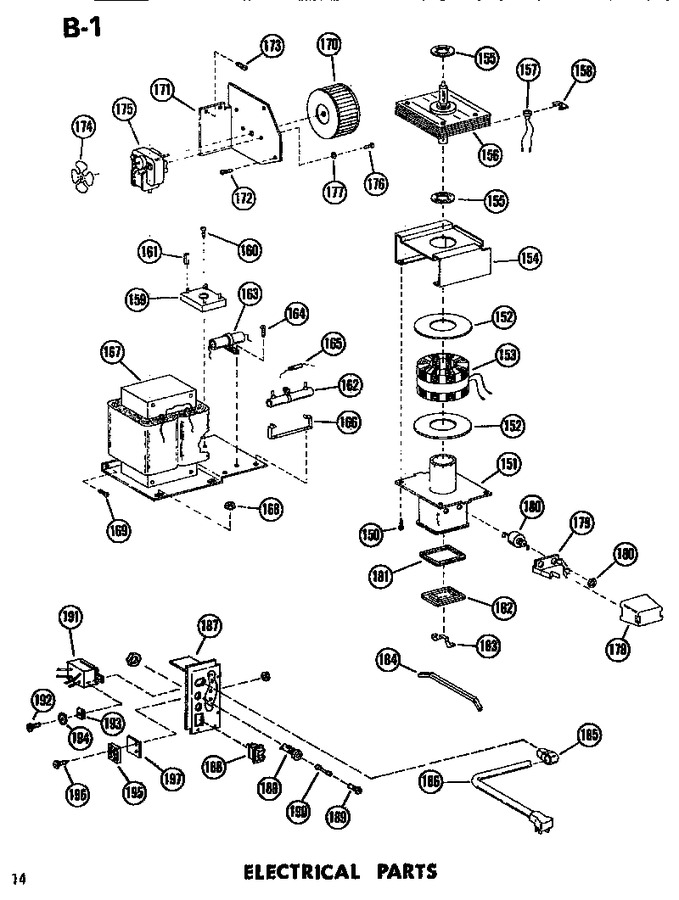

01 - Electrical
02 - Exterior
03 - Exterior
04 - Interior
05 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 150 | M0216517 | Screw |
|
- | |||||
| 151 | B5663702 | Housing Plate Assy |
|
- | |||||
| 152 | M0274028 | Washer |
|
- | |||||
| 153 | M0370602 | Magnet Coil |
|
- | |||||
| 154 | C3596101 | Support |
|
- | |||||
| 155 | B5621901 | Washer |
|
- | |||||
| 156 | M0371101 | Magnetron |
|
- | |||||
| 157 | M0370403 | Thermal Prot |
|
- | |||||
| 158 | M0115802 | Clip |
|
- | |||||
| 159 | A3165201 | Rectifier-bridge K |
|
- | |||||
| 160 | M0218116 | Screw |
|
- | |||||
| 161 | M0325301 | Insulator, Term. K |
|
- | |||||
| 162 | M0305101 | Resistor,adj |
|
- | |||||
| 163 | M0300201 | Capacitor |
|
- | |||||
| 164 | M0218116 | Screw |
|
- | |||||
| 165 | M0305201 | Resistor |
|
- | |||||
| 166 | A3165001 | Brkt-adj-resistor |
|
- | |||||
| 167 | C3656004 | Transformer |
|
- | |||||
| 168 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 169 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 170 | B5660901 | Blower Wheel |
|
- | |||||
| 171 | B5657501 | Bracket,motor Mount |
|
- | |||||
| 172 | M0230017 | Screw,tc |
|
- | |||||
| 173 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 174 | B5661801 | Fan Blade |
|
- | |||||
| 175 | M0306702 | Motor, Blower |
|
- | |||||
| 176 | M0202642 | Screw |
|
- | |||||
| 177 | M0272605 | Washer |
|
- | |||||
| 178 | B5656001 | Shield Hv K |
|
- | |||||
| 179 | B5655902 | Clip K |
|
- | |||||
| 180 | A3148801 | Capacitor K |
|
- | |||||
| 180 | M0281901 | Hex Nut |
|
- | |||||
| 181 | A3148701 | Gasket |
|
- | |||||
| 182 | B5647901 | Cover Cap Box K |
|
- | |||||
| 183 | A3145401 | Bale Strap K |
|
- | |||||
| 184 | A3164702 | Retainer Bar |
|
- | |||||
| 185 | A3194801 | Strain Relief |
|
- | |||||
| 186 | B5669001 | Cord, Power |
|
- | |||||
| 187 | B5668803 | Panel, Serial Plate & Strain R |
|
- | |||||
| 188 | B5669201 | Switch-power |
|
- | |||||
| 189 | B5693901 | Fuse Holder K |
|
- | |||||
| 190 | A3194302 | Fuse, 10 Amp |
|
- | |||||
| 191 | B5651303 | Line Filter |
|
- | |||||
| 192 | M0202516 | Screw A |
|
- | |||||
| 193 | M0288001 | Nut K |
|
- | |||||
| 194 | M0272803 | Lock Washer |
|
- | |||||
| 195 | A3178701 | Terminal Block |
|
- | |||||
| 196 | M0229005 | Screw K |
|
- | |||||
| 197 | A3180201 | Insulation Board |
|
- |
