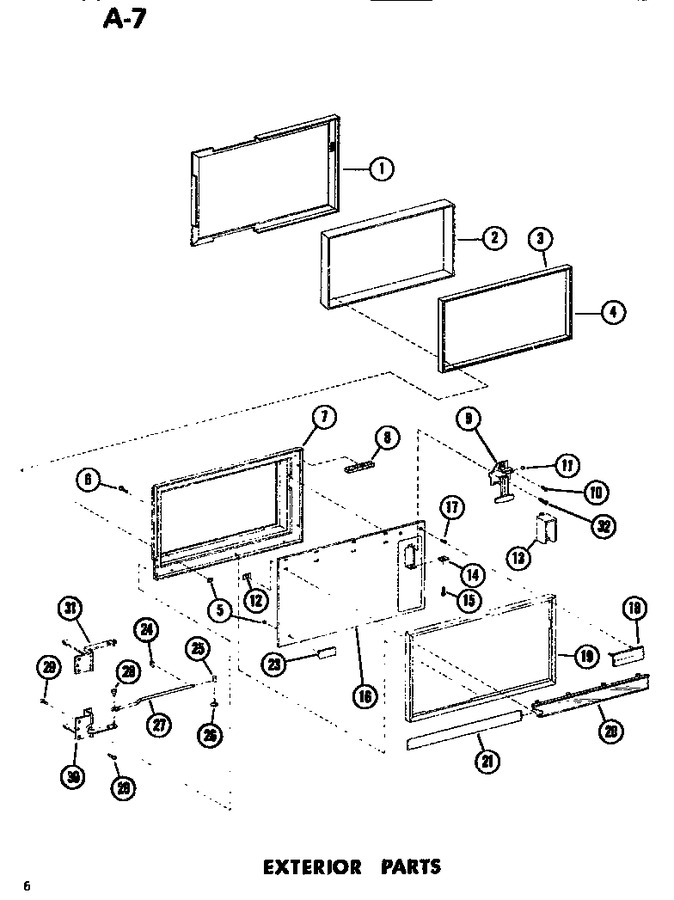

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0275115		Tape Per Roll		Appelez-nous	-
1	C3669101		Gasket		Appelez-nous	-
2	D7143802		Inner Door Kit		Appelez-nous	-
3	B5686003		Gasket		Appelez-nous	-
4	B5686004		Gasket		Appelez-nous	-
5	M0288801		Nut K		Appelez-nous	-
6	M0253118		Screw		Appelez-nous	-
7	D7132501		Weldment, Inner Door Ring		Appelez-nous	-
8	A4591121		Gasket		Appelez-nous	-
9	D7178501		T Handle Kit		Appelez-nous	-
10	M0228029		Screw K		Appelez-nous	-
11	A3195701		Guides Hndl K		Appelez-nous	-
12	M0286401		Clip		Appelez-nous	-
13	B5671901		Bezel-door Handle		Appelez-nous	-
14	M0288001		Nut K		Appelez-nous	-
15	M0234117		Screw		Appelez-nous	-
16	D7178601		Panel Outer Door K		Appelez-nous	-
17	M0113005		Clip Push On		Appelez-nous	-
18	C3668801		Escutcheon		Appelez-nous	-
19	D7132701		Outer Door Ring		Appelez-nous	-
20	B5674501		Lens-menu Guide		Appelez-nous	-
21	D7131502		Menu Guide K		Appelez-nous	-
23	B5694901		Medallion		Appelez-nous	-
24	M0274101		Snap Ring, Door Arm		Appelez-nous	-
25	A3181801		Guide-door Stop		Appelez-nous	-
26	A3182101		Bushing		Appelez-nous	-
27	B5671501		Door Stop Kit		Appelez-nous	-
28	A3185001		Bushing-door Arm		Appelez-nous	-
29	M0253230		Screw		Appelez-nous	-
30	C3666304		Hinge, Door Bottom		Appelez-nous	-
31	C3666303		Hinge, Door Top		Appelez-nous	-
32	M0228030		Screw K		Appelez-nous	-
