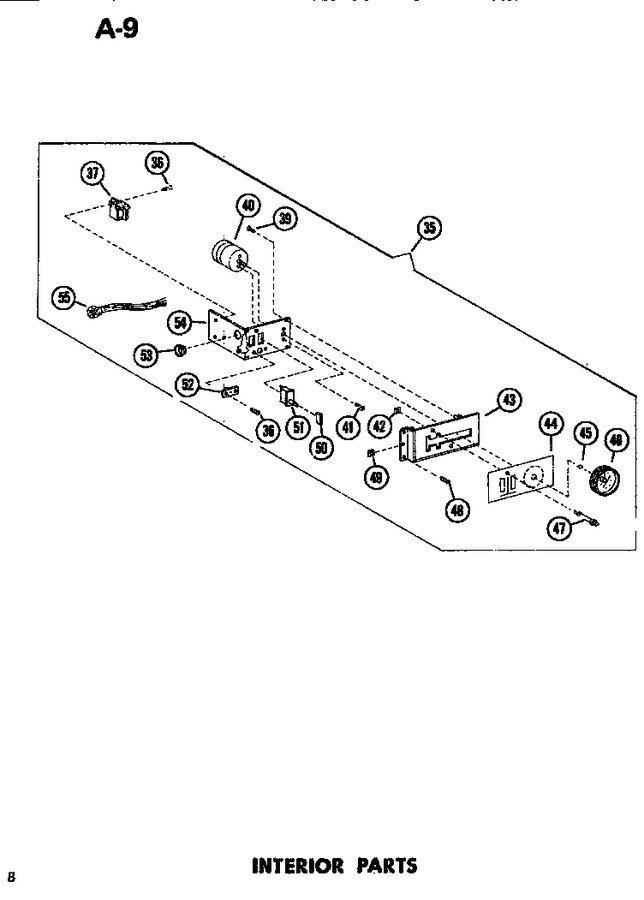

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	R0157123		Dial Assy Kit		Appelez-nous	-
36	M0230015		Screw		Appelez-nous	-
37	B5674303		Relay		Appelez-nous	-
39	M0228016		Screw		Appelez-nous	-
40	C3680402		Timer		Appelez-nous	-
41	M0202502		Screw		Appelez-nous	-
42	R0191015		Clip-pilot Light K		Appelez-nous	-
43	C3666201		Escutcheon Timer A		Appelez-nous	-
44	B5674906		Thinplate		Appelez-nous	-
45	M0117001		Clip		Appelez-nous	-
46	D7028701		Knob A		Appelez-nous	-
47	A3184402		Pilot Light		Appelez-nous	-
48	M0253218		Screw		Appelez-nous	-
49	M0288102		Speed Nut		Appelez-nous	-
50	B5674001		Button Stop A		Appelez-nous	-
50	B5674002		Button Start A		Appelez-nous	-
51	B5674701		Switch		Appelez-nous	-
52	A3186901		Terminal Board A		Appelez-nous	-
53	A4554802		Snap Bushing		Appelez-nous	-
54	C3676801		Bracket-dial Timer		Appelez-nous	-
55	C3680501		Wiring Harness		Appelez-nous	-
