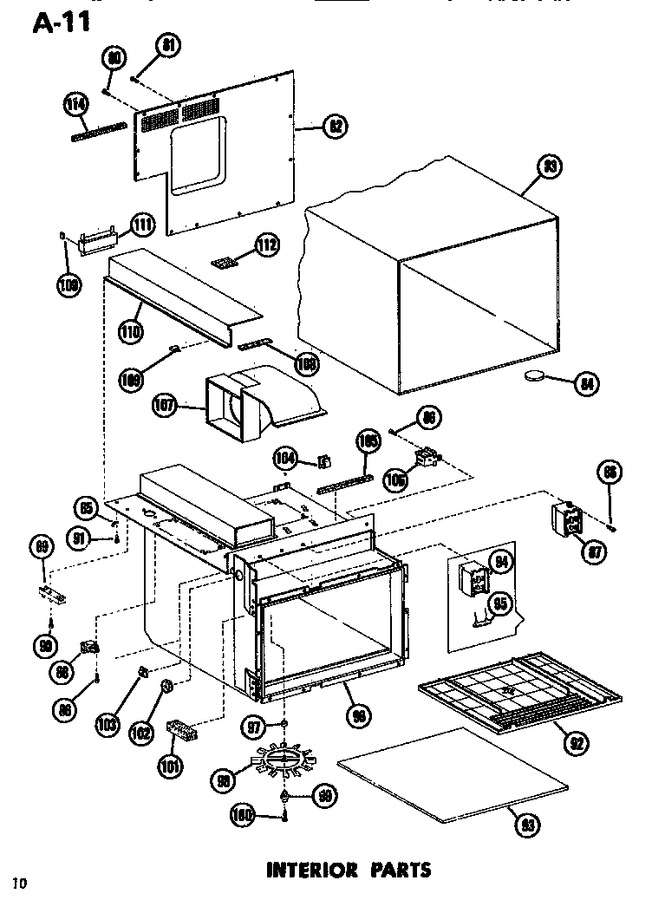

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
80	M0230015		Screw		Appelez-nous	-
81	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
82	D7132901		Back Panel		Appelez-nous	-
83	D7110601		Wrapper, Outer Case		Appelez-nous	-
84	A3173001		Foot,oc Wrapper		Appelez-nous	-
85	M0320901		Terminal		Appelez-nous	-
86	M0230015		Screw		Appelez-nous	-
87	C3669602		Kit, Relay		Appelez-nous	-
88	C3669501		Thermostat		Appelez-nous	-
89	B5677202		Terminal Block		Appelez-nous	-
90	M0234117		Screw		Appelez-nous	-
91	M0216517		Screw		Appelez-nous	-
92	D7190901		Grease Shield		Appelez-nous	-
93	A3183701		(+) Use A3183704		Appelez-nous	-
93	M0275501		Sealer		Appelez-nous	-
94	R0159008		Kit, Relay		Appelez-nous	-
95	M0305007		Resistor, Relay A		Appelez-nous	-
96	D7138103		Oven Cavity		Appelez-nous	-
97	A3165901		Spacer,stirrer		Appelez-nous	-
98	D7104401		Fan, Stirrer		Appelez-nous	-
99	B5661601		Bushing,stirrer		Appelez-nous	-
100	M0201903		Machine Screw		Appelez-nous	-
101	A3030308		Gasket		Appelez-nous	-
102	A3196402		Bushing-wiring		Appelez-nous	-
103	M0104102		Clip, Cord				$ 8.10
104	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
105	A3030303		Gasket (per Foot)		Appelez-nous	-
106	B5674304		Relay		Appelez-nous	-
107	D7099001		Blower Scroll		Appelez-nous	-
108	A3030330		Gasket,per Ft		Appelez-nous	-
109	M0113501		Clip		Appelez-nous	-
109	M0113503		Clip		Appelez-nous	-
110	C3679002		Wldmt-air Duct		Appelez-nous	-
111	B5675301		Wldmt-wg Shield		Appelez-nous	-
112	B5107614		Gasket		Appelez-nous	-
114	A3030302		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
