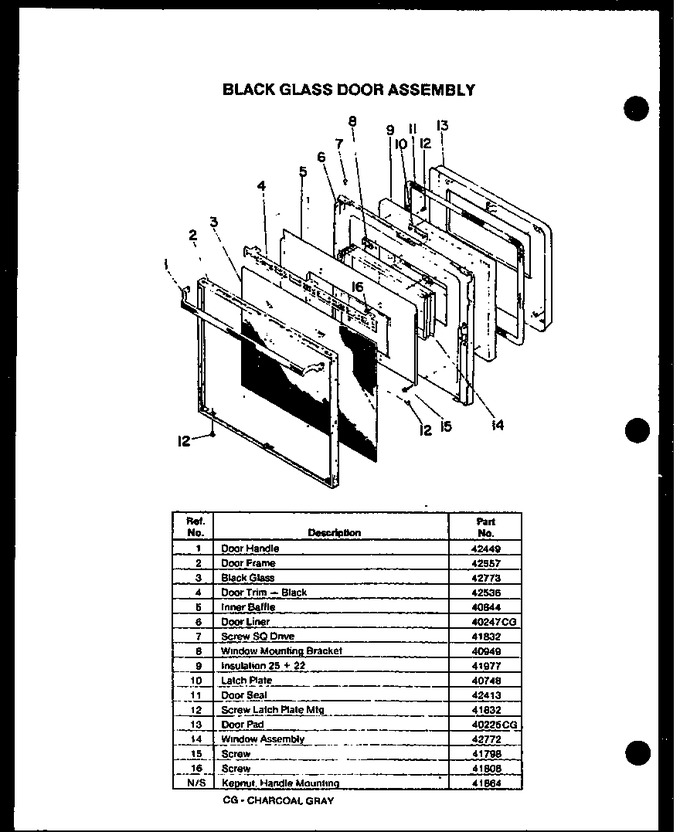

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	42449		Instructions		Appelez-nous	-
2	42557		Control Panel		Appelez-nous	-
3	0042773		Black Glass Door Glass Pyro Th		Appelez-nous	-
4	0042536		Top Door Trim Pyro Th		Appelez-nous	-
5	Y0040844		Inner Baffle Th Pyro Door		Appelez-nous	-
6	40247CG		Door Liner		Appelez-nous	-
7	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
8	Y0040949		Window Mtg Brkt Pyro Th Dr		Appelez-nous	-
9	Y0041977		Sub 95197		Appelez-nous	-
10	Y0040748		Sub 52039, Latch Plate		Appelez-nous	-
11	Y0042413		Gasket, Door (76``)		Appelez-nous	-
12	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
13	40225CG		Door Pad		Appelez-nous	-
14	42772		Transformer				$ 2.84
15	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
16	Y41808		Screw		Appelez-nous	-
NI	WP488130		Sub 97886 Hex Nut Keds 8/32   (Replaces: Y0041864)				$ 6.27
