View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Black Glass Door Assy
02 - Cabiner Section
03 - Control Panel Section
04 - Door Latch Assy
05 - Oven Acs/high Voltage Section/mini Rail
06 - Page 1
SELECT A DIAGRAM
New Model Search:

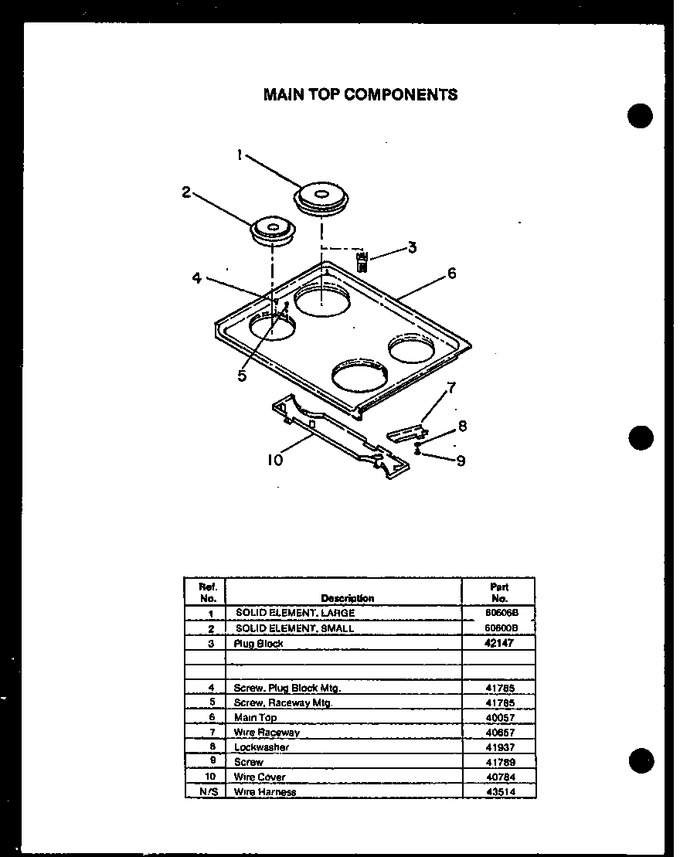

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60606B | Solid Element, Large |
|
- | |||||
| 2 | 60600B | Solid Element, Small |
|
- | |||||
| 3 | 330031 | Kit, Top Element Term Block (Replaces: Y0042147) |
|
Immediately | $ 14.48 | ||||
| 4 | Y0041785 | Screw, No.6-32 X .250 Pan Hd Ph |
|
- | |||||
| 5 | Y0041785 | Screw, No.6-32 X .250 Pan Hd Ph |
|
- | |||||
| 6 | 0040057 | Sub 40067, Main Top, Chr |
|
- | |||||
| 7 | Y0040657 | Wire Raceway |
|
- | |||||
| 8 | 0041937 | Washer Handle Mounting |
|
- | |||||
| 9 | Y0041789 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 10 | 0040784 | Main Top Wire Cover |
|
- | |||||
| NI | 0043514 | 5643677 W.h. |
|
- |
