SELECT A DIAGRAM

01 - Black Glass Door Assy

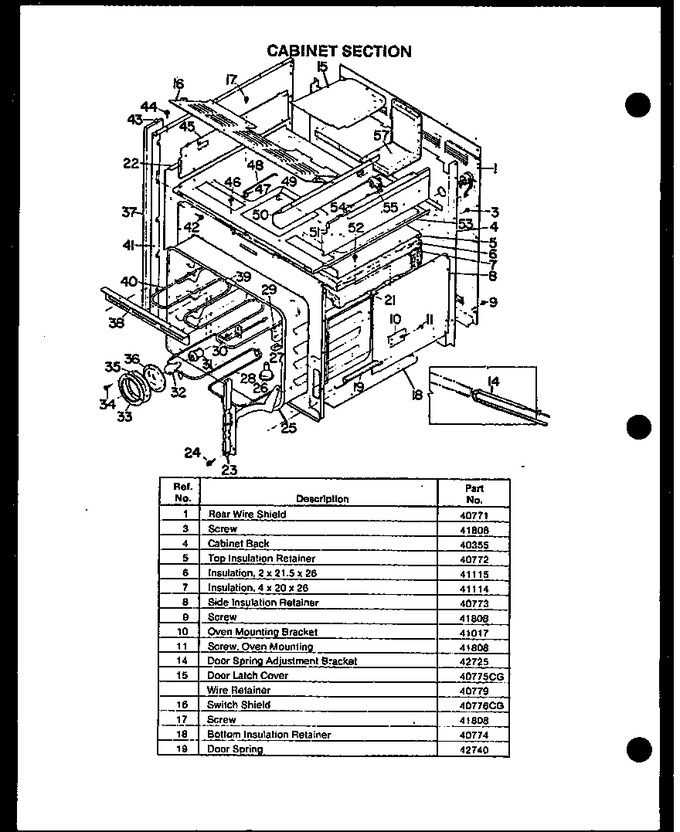

02 - Cabiner Section


03 - Control Panel Section


04 - Door Latch Assy


05 - Oven Acs/high Voltage Section/mini Rail


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040771		Rear Wire Shield		Appelez-nous	-
3	Y41808		Screw		Appelez-nous	-
4	Y0040355		Cabinet Back Loboy		Appelez-nous	-
5	Y0040772		Top Insulation Retain Pyro Th		Appelez-nous	-
6	Y0041115		Insulation 2x20x26		Appelez-nous	-
7	Y0041114		Insulation 26x4x20 Awx Hitemp		Appelez-nous	-
8	Y0040773		Side Insul Retain Pyro Th		Appelez-nous	-
9	Y41808		Screw		Appelez-nous	-
10	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
11	Y41808		Screw		Appelez-nous	-
14	0042725		Spring Adjustment Rod		Appelez-nous	-
15	40775CG		Cover, Door Latch		Appelez-nous	-
16	40776CG		Shield, Switch		Appelez-nous	-
17	Y41808		Screw		Appelez-nous	-
18	Y0040774		Bot Insul Retain Pyro Th		Appelez-nous	-
19	Y0042740		Spring, Oven Door-pyro W/o		Appelez-nous	-
21	Y0041976		Sub 41966, Insulation		Appelez-nous	-
22	Y0040773		Side Insul Retain Pyro Th		Appelez-nous	-
23	Y0041492		Sub 52095, Hinge Assy		Appelez-nous	-
24	WP489128		Screw No.8 Stainless Elements   (Replaces: Y0041817)				$ 9.79
25	40175CG		Sub 311144e, Kit, Oven Liner		Appelez-nous	-
26	42230		Inner Panel		Appelez-nous	-
27	Y0040925		Capillary Hole Cover Plate		Appelez-nous	-
28	Y0042146		Bake Element Pyro Th		Appelez-nous	-
29	Y0040924		Oven Probe Brkt Pyro Th		Appelez-nous	-
30	WP489128		Screw No.8 Stainless Elements   (Replaces: Y0041817)				$ 9.79
31	50297		Oven Light Socket				$ 3.24
32	Y0042175		Bulb, Light		Appelez-nous	-
33	0040995		Lens Retainer Stainless Steel		Appelez-nous	-
34	Y41808		Screw		Appelez-nous	-
35	Y0041987		Gasket,oven Light		Appelez-nous	-
36	Y0042769		Oven Light Lens Pyro. Walloven		Appelez-nous	-
37	Y0042516		Side Trim Rt		Appelez-nous	-
37	Y0042517		Side Trim Lt		Appelez-nous	-
38	Y0040902		Broil Element Support Pyro		Appelez-nous	-
39	0040398		Chip Cover Pyro W.o.		Appelez-nous	-
40	0042145		Broil Unit For Pyro T.h. Range		Appelez-nous	-
41	Y0040315		Sub 302911g, Side Panel		Appelez-nous	-
42	Y41808		Screw		Appelez-nous	-
43	Y0042007		Top Spacer		Appelez-nous	-
44	Y41808		Screw		Appelez-nous	-
45	40467CG		Side, Burner Box Lh		Appelez-nous	-
46	Y41808		Screw		Appelez-nous	-
47	Y0041869		Timerman		Appelez-nous	-
48	0042734		Top Support Rod		Appelez-nous	-
49	Y41808		Screw		Appelez-nous	-
50	Y0040830		Wire Channel Du976 966		Appelez-nous	-
51	40466CG		Side, Burner Box Rh		Appelez-nous	-
52	Y41808		Screw		Appelez-nous	-
53	40478CG		Bottom, Burner Box		Appelez-nous	-
54	0041024		Unit Support Brkt		Appelez-nous	-
55	43611		Wire Harness		Appelez-nous	-
57	Y0040587		Flue Box W/a Pyro Th		Appelez-nous	-
NI	Y0042046		Limit Control-lower Oven-225		Appelez-nous	-
NI	Y0040406		Chip Cover Pyro Th		Appelez-nous	-
NI	Y0043739		5651106 Conduit		Appelez-nous	-
NI	Y0040779		Terminal Block Cover Pyro Th		Appelez-nous	-
NI	Y0040940		Terminal Shield Pyro Th		Appelez-nous	-
NI	Y0041025		Bottom Side Support Th Pyro		Appelez-nous	-
NI	Y0040397		Bottom Door Trim Pyro Th		Appelez-nous	-
NI	Y0040777		Term Block Cover Pyro Th		Appelez-nous	-
NI	Y0040969		Relay Mtg Plate Pyro Th		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
