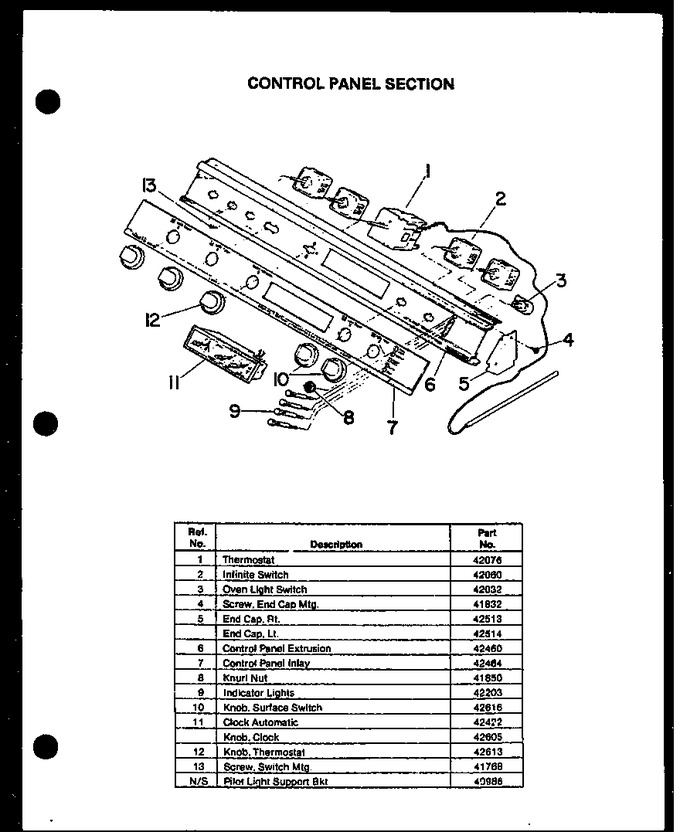

01 - Black Glass Door Assy
02 - Cabiner Section
03 - Control Panel Section
04 - Door Latch Assy
05 - Oven Acs/high Voltage Section/mini Rail
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0042076 | Pyro Thermostat With Top Heat |
|
- | |||||
| 2 | W11121639 | Switch,inf(240p-1243) (Replaces: Y0042060) |
|
$ 149.17 | |||||
| 3 | 0042032 | Push Switch Tab Terminals |
|
- | |||||
| 4 | Y0041832 | Screw No.8x3/8 Sq. Drive |
|
- | |||||
| 5 | Y0042514 | End Cap Lt. C.pan. Pyro Th |
|
- | |||||
| 5 | Y0042513 | End Cap Rt. C. Pan Pyro Th |
|
- | |||||
| 6 | Y0042460 | Cont Pan Extr Pyro Th |
|
- | |||||
| 7 | 0042464 | Inlay, Control Panel |
|
- | |||||
| 8 | 0041850 | Knurl Nut |
|
- | |||||
| 9 | 0042203 | Pilot Light |
|
- | |||||
| 10 | Y0042616 | Knob,inf Switch |
|
- | |||||
| 11 | Y0042422 | Kit, Clock |
|
- | |||||
| 11 | Y0042605 | Knob Clock For 3/16 Dia Stem |
|
- | |||||
| 12 | Y0042613 | Knob Stat Pyro Mm |
|
- | |||||
| 13 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| NI | Y0040986 | Brkt, Pilot Light Support |
|
- |
