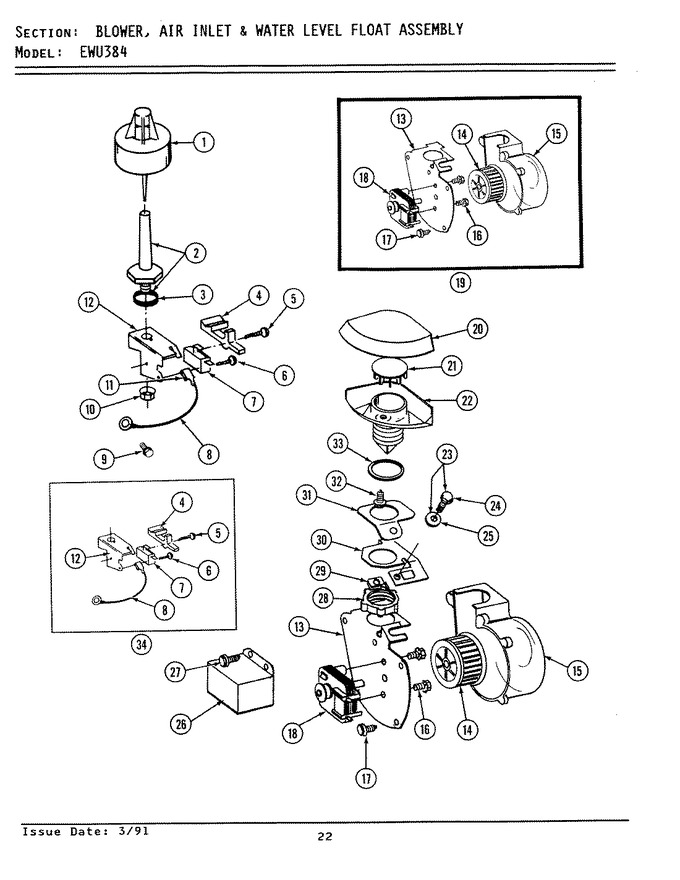

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901141		Float		Appelez-nous	-
2	901114		Float Guide With Gasket		Appelez-nous	-
3	911244		Gasket		Appelez-nous	-
4	912014		Lever, Actuator				$ 52.13
5	912015		Pin, Lever Pivot		Appelez-nous	-
6	912012		Screw		Appelez-nous	-
7	900882		Switch, Water Level		Appelez-nous	-
8	901858		Ground Wire		Appelez-nous	-
9	WP4312464		Screw   (Replaces: 912197)				$ 6.26
10	911265		Palnut, Float				$ 5.83
11	912016		Receptacle		Appelez-nous	-
12	912013		Mounting Plate		Appelez-nous	-
13	911579		Blower Bracket		Appelez-nous	-
14	901289		Blower Wheel		Appelez-nous	-
15	911577		Blower Housing		Appelez-nous	-
16	910683		Screw		Appelez-nous	-
17	911439		Screw		Appelez-nous	-
18	901290		Blower Motor		Appelez-nous	-
19	901392		Blower Assembly		Appelez-nous	-
20	911575		Air Inlet Cap		Appelez-nous	-
21	911775		Blower Valve		Appelez-nous	-
22	911595		Air Inlet		Appelez-nous	-
23	901587		Screw And Washers Assembly		Appelez-nous	-
24	911857		Screw		Appelez-nous	-
25	902283		Washer		Appelez-nous	-
26	911958		Blower Motor Cover-canada		Appelez-nous	-
27	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)				$ 6.75
28	911576		Nut, Air Inlet		Appelez-nous	-
29	310217		No Longer Available		Appelez-nous	-
30	911580		Blower Support		Appelez-nous	-
31	911813		Pad, Blower Support		Appelez-nous	-
32	911536		Screw		Appelez-nous	-
33	911578		Gasket		Appelez-nous	-
34	900911		Float Switch & Bracket Assm		Appelez-nous	-
