Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 901108 Detergent Cup,cover & Seal Appelez-nous -
2 902884 Detergent Cup Appelez-nous -
3 911700 Screw Appelez-nous -
4 W10841140 Silastic,adh.sealant   (Replaces: Y058700) In-Stock Immediately $ 24.92

4 911598 Cover For Door Vent Appelez-nous -
5 WP901403 Gasket, Door   (Replaces: 901403) In-Stock Immediately $ 170.40

6 901011 Bi-metal Release Appelez-nous -
7 910186 Screw Appelez-nous -
8 910413 Gasket Appelez-nous -
9 911348 Detergent Cup Pin Appelez-nous -
10 901090 Screw And Washer Assembly Appelez-nous -
11 901551 Door And Gasket Assembly Appelez-nous -
12 911692 Flapper For Vent Appelez-nous -
13 911036 Guide Button Appelez-nous -
14 911950 Vent For Door - Canada Appelez-nous -
14 911597 Vent For Door Appelez-nous -
15 911591 Spring, Interlock Appelez-nous -
16 902791 Latch Assy Appelez-nous -
17 911592 Return Spring Appelez-nous -
18 912078 Door Switch Shield Appelez-nous -
19 901284 Switch, Door Appelez-nous -
20 910337 Screw Appelez-nous -
21 Y911263 Screw Appelez-nous -
22 911066 Screw Appelez-nous -
23 911466 Hinge-right Hand Appelez-nous -
24 911599 Knob For Latch Handle Appelez-nous -
25 WP90767 Screw   (Replaces: 214332) In-Stock Immediately $ 7.04

26 910391 Insert Special Order $ 5.84

27 Y901862 Door Spring Kit Special Order $ 20.84

28 901111 Door Spring Kit Special Order $ 39.18

29 911448 Insert For Hinge Special Order $ 5.75

30 911467 Hinge-left Hand Appelez-nous -
31 911874 Grounding Bracket Appelez-nous -
32 910170 Nut-fill Spout Appelez-nous -
33 910069 Washer, Tub Top Special Order $ 35.86

34 910821 Plug For Dispenser Holes Special Order $ 37.31

35 902247 Cam And Spring Kit Appelez-nous -
36 911397 Detergent Cup Seal Special Order $ 24.13


    View Diagram in Separate Window     Print Icon   Print Part List

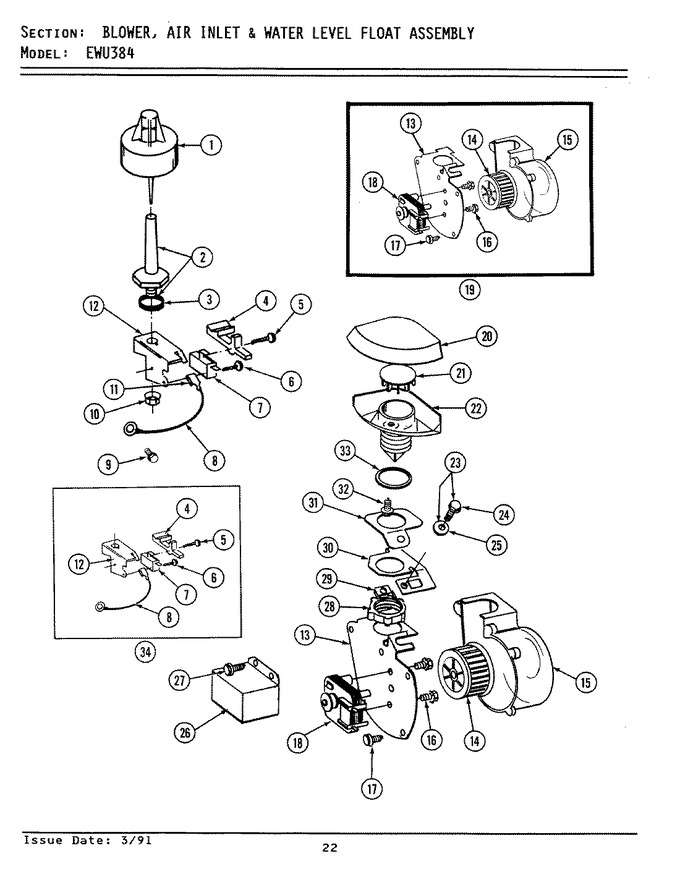

Diagram for EWU384
