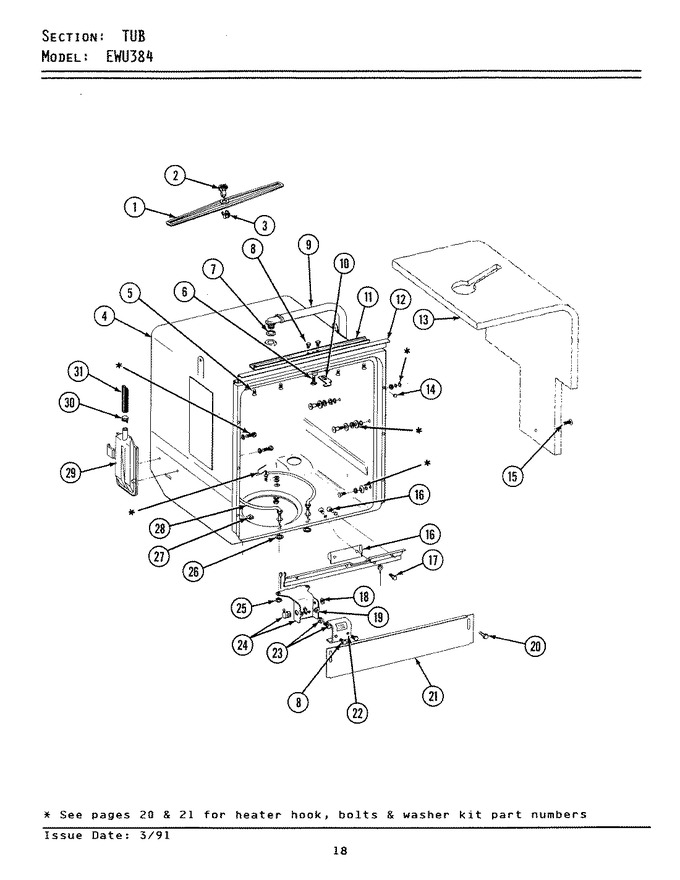

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 900020 | Upper Spray Arm (w/nut) |
|
- | |||||
| 2 | 911594 | Outlet For Upper Spray Arm |
|
- | |||||
| 3 | 911861 | Nut |
|
- | |||||
| 4 | 901304 | Tub Assembly |
|
- | |||||
| 5 | 901090 | Screw And Washer Assembly |
|
- | |||||
| 6 | WP3400094 | Screw (Replaces: 911665) |
|
$ 7.14 | |||||
| 7 | 911356 | Washer |
|
- | |||||
| 8 | WPW10139210 | Screw (Replaces: 910624) |
|
$ 6.75 | |||||
| 9 | 901586 | Top Spray Hose W/coupling |
|
- | |||||
| 10 | 911582 | Strike |
|
- | |||||
| 11 | 911941 | Top Flange Channel |
|
- | |||||
| 12 | 902888 | Top Flange Assy |
|
- | |||||
| 13 | WPW10223013 | Insulation (Replaces: 912456) |
|
$ 83.60 | |||||
| 14 | 911401 | Hole Plug |
|
- | |||||
| 15 | 911917 | Fastener, Insulation |
|
- | |||||
| 16 | 910604 | Screw |
|
- | |||||
| 16 | SC1002 | Screws,washers & Shield Ass (Replaces: 901303) |
|
Immediately | $ 87.61 | ||||
| 16 | 910567 | Washer |
|
- | |||||
| 17 | WP4312464 | Screw (Replaces: 911050) |
|
$ 6.26 | |||||
| 18 | 910564 | Insulating Bushing |
|
- | |||||
| 19 | 911386 | Terminal Compartment |
|
- | |||||
| 20 | W11233072 | Screw (Replaces: 910647) |
|
Immediately | $ 12.62 | ||||
| 21 | 911232 | Panel, Toe |
|
- | |||||
| 22 | 911221 | Cover, Terminal |
|
- | |||||
| 22 | 911766 | Label |
|
- | |||||
| 23 | W10850756 | Screw & Washer Assy. (Replaces: 303846) |
|
$ 6.98 | |||||
| 24 | 4396672 | Clamp, Cable (Replaces: 400321) |
|
Immediately | $ 17.38 | ||||
| 25 | 910180 | Jam Nut |
|
- | |||||
| 26 | 910603 | Washer, Heating Element |
|
- | |||||
| 27 | 911268 | Fastener |
|
- | |||||
| 28 | 900871 | Heating Element |
|
- | |||||
| 29 | 911610 | Vent Cover |
|
- | |||||
| 30 | WP596669 | Clamp, Spring (Replaces: 911856) |
|
Immediately | $ 7.56 | ||||
| 31 | 911249 | Injector Hose |
|
- |
