Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 912262 Spout Cap Appelez-nous -
2 902354 Indicator, Level Appelez-nous -
3 910170 Nut-fill Spout Appelez-nous -
4 910069 Washer, Tub Top Special Order $ 35.86

5 902355 Dispensing Valve Appelez-nous -
6 UT076 Coil For Valve   (Replaces: 902358) In-Stock Immediately $ 44.96

7 901572 Rinse Dispenser Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

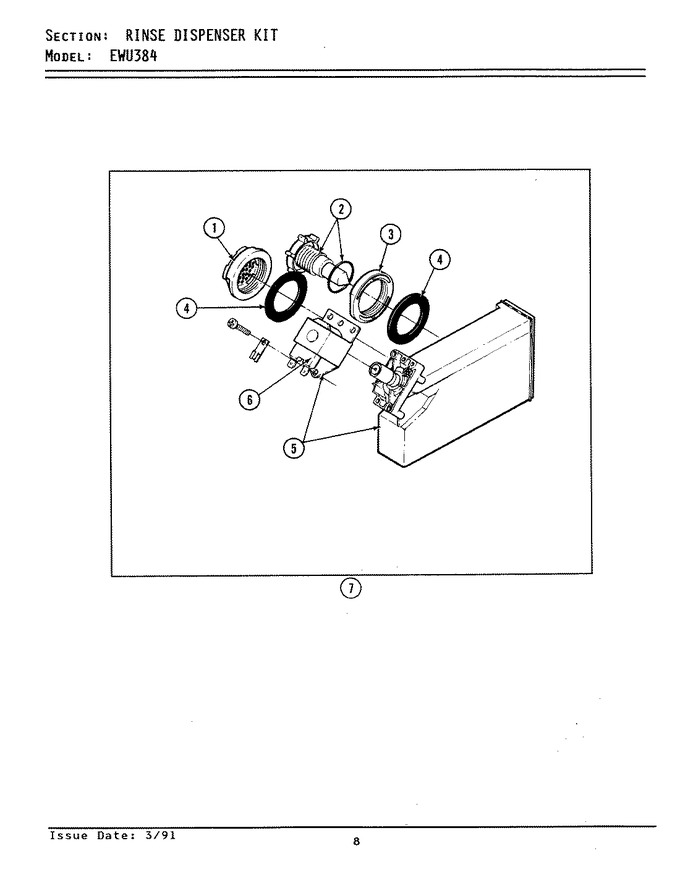

Diagram for EWU384
