Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 52806 Cabinet Top Appelez-nous -
2 0040911 Flue Collar Cap Brkt Pyro W/o Appelez-nous -
3 41837 Screw, Sw. Mtg. Bkt. Appelez-nous -
3 Y41808 Screw Appelez-nous -
4 0040542 Cover, Flue Collar Appelez-nous -
5 Y0040348 Upper Cab. Back Pyro W/o Appelez-nous -
6 Y52815 Control Compartment Back Appelez-nous -
7 Y52802 Control Compartment Side, Rt. Appelez-nous -
8 51751 Clip Appelez-nous -
9 Y0051749 Gasket, Smoke Eliminator Appelez-nous -
10 0046325 Top, Lower Oven Appelez-nous -
10 52801 Upper Oven Top Appelez-nous -
11 Y0051642 Insul. Rtnr., Rear Appelez-nous -
12 Y0040581 Lower Oven Flue Box W/a Pyro Appelez-nous -
13 Y0042406 Tube, Lower Oven Vent-pyro W/o Appelez-nous -
14 Y0041113 Sub 41966, Insulation Appelez-nous -
15 Y0041976 Sub 41966, Insulation Appelez-nous -
16 73028 Fastener Appelez-nous -
17 0040740 Lamp, Cup Appelez-nous -
18 Y0052161 Switch,dr. Interlock Appelez-nous -
19 51655 Mounting Brkt. Sw. Appelez-nous -
20 92042 Screw, Sw. Mtg. Appelez-nous -
21 0041021 Support, Rear Oven-pyro W/o Appelez-nous -
22 Y0040742 Insulation Retainer Sides Pyro Appelez-nous -
23 Y0040349 Lower Cabinet Back Pyro W/o Appelez-nous -
24 Y40990 Door Spring Rod Bracket Appelez-nous -
25 0042725 Spring Adjustment Rod Appelez-nous -
26 M0282005 Sub 97884 Nut   (Replaces: Y0041853) Special Order $ 7.07

27 Y00000000 See Note Lower Oven Air Channel -- (not Used) Appelez-nous -
28 Y0040752 Bottom, Lwr Oven Appelez-nous -
29 Y0041019 Runner, Base-pyro W/o Appelez-nous -
30 Y0052669 Trim, Side, Rh Appelez-nous -
31 Y0040682 Capillary Cover Eo Double Jap Appelez-nous -
32 42230 Inner Panel Appelez-nous -
33 0041773 Screw 6 32x1 Slotted Rn Brass Appelez-nous -
34 0042576 Bottom Trim (black) Appelez-nous -
35 52381 Oven Cavity, Lower Mdl Fdo180 Appelez-nous -
36 40150 Main Front Appelez-nous -
37 Y00000000 See Note Lower Cabinet Side, Rt -- (not Used) Appelez-nous -
38 Y0040850 Shield, Reflector Appelez-nous -
39 0052276 Lens, Oven Light Appelez-nous -
40 Y0041987 Gasket,oven Light Appelez-nous -
41 M0282005 Nut K   (Replaces: Y0097887) Special Order $ 7.07

42 0040995 Lens Retainer Stainless Steel Appelez-nous -
43 Y0052670 Trim, Side, Lh Appelez-nous -
44 Y0042018 Latch Handle Guide Pyro W.o. Appelez-nous -
45 Y0042580 Center Trim (black) Appelez-nous -
46 0041020 Support, Front Oven-pyro W/o Appelez-nous -
47 Y00000000 See Note Panel, Mom. Sw. Cover -- (rt) (not Used) Appelez-nous -
48 WP90767 Screw, Sm   (Replaces: Y0041816) In-Stock Immediately $ 7.04

49 Y0052095 Hinge Assy Appelez-nous -
52 Y0040741 Upper Oven Bottom Pyro W/o Appelez-nous -
53 Y0040848 Probe Recept. Cover Stainless Appelez-nous -
54 0041815 Shoulder Screw Appelez-nous -
55 Y0052492 Trim, Bottom, Control Panel Appelez-nous -
56 52697 Motor Appelez-nous -
57 67825 Choke, Heat Control Cap In-Stock Immediately $ 25.39

58 Y0040903 Latch Mtg. Brkt Pyro W/o Appelez-nous -
59 Y00000000 See Note Bracket, Intrusion. -- (lt. Or Rt.) (not Used) Appelez-nous -
60 Y0040780 Terminal Shield Pryo W/o Appelez-nous -
61 Y0042175 Bulb, Light Appelez-nous -
62 76029 Screw Appelez-nous -
63 52385 Oven Cavity, Upper Appelez-nous -
65 Y63420 Bracket Pin Assy., Upper Oven Appelez-nous -
66 Y0042015 Latch Handle Guide Pyro Appelez-nous -
NI 0040405 Chip Cover Pyro Wo Appelez-nous -
NI Y0040925 Capillary Hole Cover Plate Appelez-nous -
NI 0052818 Air Baffle Appelez-nous -
NI 0054086 Thermostat Appelez-nous -
NI 63477 Chip Cover, Upper Oven Appelez-nous -
NI 52241 Upper Oven Probe Appelez-nous -
NI Y00000000 See Note Panel, Sec. Switch Cover -- (lt) (not Used) Appelez-nous -
NI 79498 Receptacle, Meat Probe Appelez-nous -
NI 0041839 Black Screw 8-18x.500 Appelez-nous -
NI Y0042740 Spring, Oven Door-pyro W/o Appelez-nous -
NI 67053 Clip, Thermostat Bulb Special Order $ 71.06

NI 52094 Insulation Appelez-nous -
NI 0054773 Thermostat Appelez-nous -
NI 52242 Lower Oven Probe Appelez-nous -
NI Y64106 Meat Probe Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

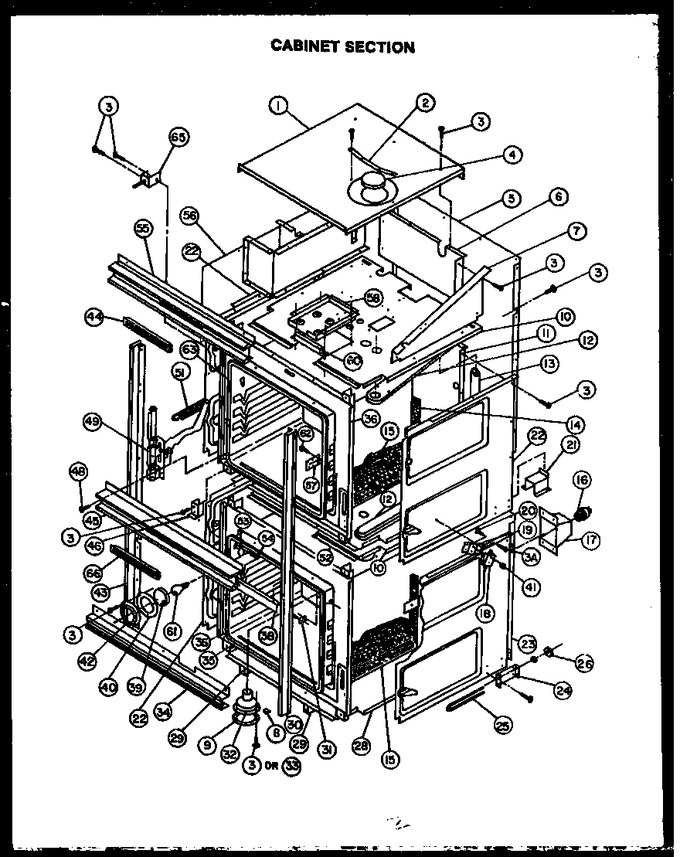

Diagram for FDO180
