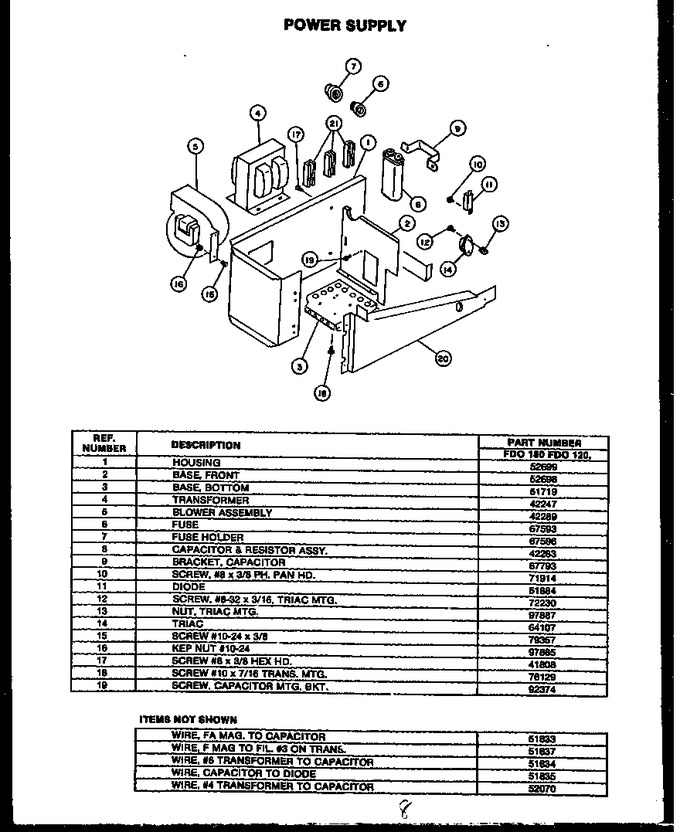

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52699		Short 90 Degrees Elbow		Appelez-nous	-
2	52698		Exhaust Tube		Appelez-nous	-
3	51719		Base, Bottom		Appelez-nous	-
4	Y0042247		Sub 312899, Kit Transformer		Appelez-nous	-
5	Y0042289		Blower Assy Microwaves		Appelez-nous	-
6	67593		Fuse		Appelez-nous	-
7	67596		Fuse Holder		Appelez-nous	-
8	0042283		Capacitor & Res 60hz		Appelez-nous	-
9	67793		Bracket, Capacitor		Appelez-nous	-
10	Y71914		Screw, S.m.		Appelez-nous	-
11	Y0051884		Sub 89945, Diode		Appelez-nous	-
12	72230		Screw		Appelez-nous	-
13	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
14	Y64107		Triac		Appelez-nous	-
15	79357		Screw		Appelez-nous	-
16	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
17	Y41808		Screw		Appelez-nous	-
18	DE81-07625A		Screw   (Replaces: 76129)				$ 43.88
19	Y0092374		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
NI	51837		Door Release Rod		Appelez-nous	-
NI	51834		Shaft,drum		Appelez-nous	-
NI	51835		Shaft,fan				$ 9.22
NI	Y0052070		Wire Jumper		Appelez-nous	-
NI	51833		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
