Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 51690 Waveguide Assy. Appelez-nous -
2 67882 Magnetron In-Stock Immediately $ 11.07

3 0051847 Hi Limit, Magnetron Appelez-nous -
4 M0282009 Nut   (Replaces: Y0097885) Special Order $ 12.06

5 0052968 Sub 51747, Gasket, Waveguide Appelez-nous -
6 0051767 Motor, Stirrer Appelez-nous -
7 Y0092365 Screw 4-40x1 Appelez-nous -
8 Y0091587 Cable, Clip Esm Appelez-nous -
9 Y0051630 Duct, Waveguide Appelez-nous -
10 Y41808 Screw Appelez-nous -
11 51748 Gasket, Waveguide/box Appelez-nous -
12 0092372 Screw 6x1/4 Phil Pan Hd Appelez-nous -
13 0052826 Sub 53144, Stirrer Assy. Appelez-nous -
14 51649 Stirrer Cover, Ceramic Appelez-nous -
15 51654 Frame Stirrer Cover Appelez-nous -
16 Y71642 Screw Appelez-nous -
17 0052260 Gasket, Stirrer Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

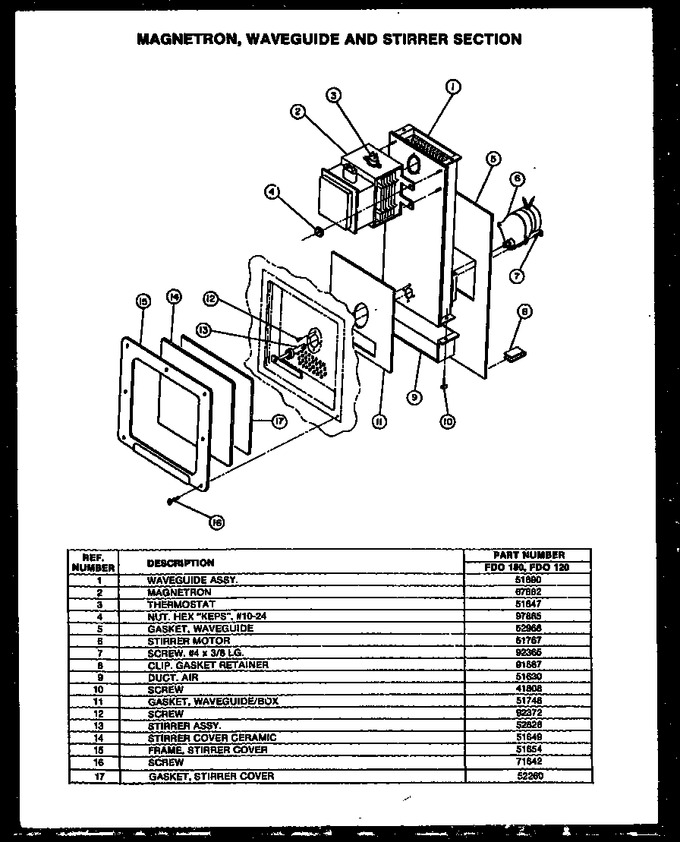

Diagram for FDO180
