01 - Cabinet Section


02 - Control Compartment


03 - Door Latch Assy Fdo 180


04 - Lower Door Assy. Fdo 180


05 - Lower Oven Accessories Fdo 180


06 - Magnetron

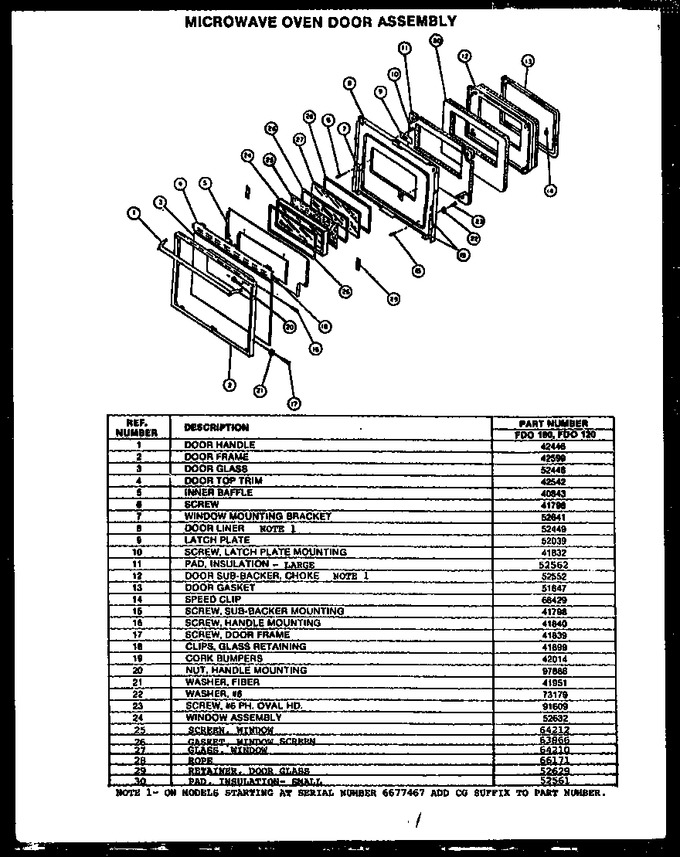

07 - Microwave Oven Door Assy


08 - Oven Acessories Fdo 180


09 - Page 1


10 - Power Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042446		Oven Door Handle		Appelez-nous	-
2	0042599		Door Frame, Black		Appelez-nous	-
3	0042448		Oven Door Handle Walloven		Appelez-nous	-
4	0042542		Door Top Trim Pk411		Appelez-nous	-
5	Y0040843		Sub 301830g, Inner Baffle		Appelez-nous	-
6	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
7	Y52641		Window Mounting Bracket		Appelez-nous	-
8	0052449		Door Liner, Charcoal Gray		Appelez-nous	-
9	Y0052039		Latch Plate		Appelez-nous	-
10	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
11	52562		Idler Lever		Appelez-nous	-
12	52552		Bumper, Oven Door		Appelez-nous	-
13	Y51647		Tape,2 In Wide 3m 234		Appelez-nous	-
14	Y68429		Speed Clip		Appelez-nous	-
15	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
16	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
17	0041839		Black Screw 8-18x.500		Appelez-nous	-
18	Y0041899		Glass Clip		Appelez-nous	-
19	0042014		Cork Bumper		Appelez-nous	-
20	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
21	0041951		Black Fiber Washer		Appelez-nous	-
22	73179		Switch		Appelez-nous	-
23	Y0091609		Screw		Appelez-nous	-
24	0052632		Window Assy		Appelez-nous	-
25	Y64212		Screen, Window		Appelez-nous	-
26	Y63866		Gasket, Window Screen		Appelez-nous	-
27	Y64210		Glass, Window		Appelez-nous	-
28	DE81-10110A		Gasket, Window Assembly   (Replaces: 66171)				$ 118.85
29	Y0052629		Retainer, Door Glass		Appelez-nous	-
30	54415P		Idler Pulley   (Replaces: 52561)		Appelez-nous	-
