01 - Black Glass Door Assy


02 - Cabinet Section


03 - Door Latch Assy


04 - Glass-ceramic Module


05 - Grille Modu Le


06 - Mini Rail


07 - Oven Accessories


08 - Page 1


09 - Perma-coil Module


10 - Range - Back Panel


11 - Range Top Section


12 - Rotisserie


13 - Storage Drawer - Door Section

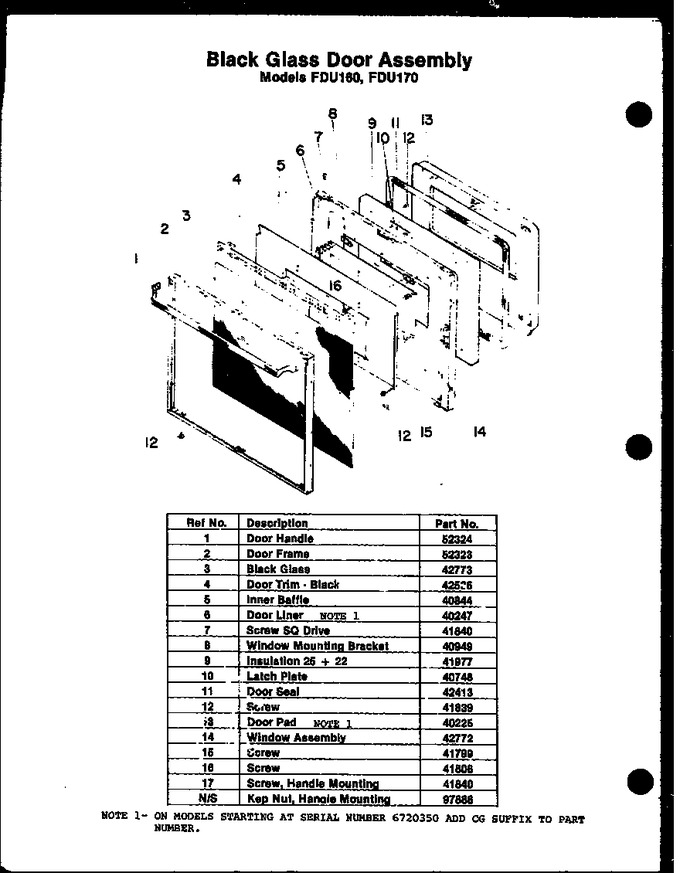

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0052324		Handle		Appelez-nous	-
2	52323		Spring		Appelez-nous	-
3	0042773		Black Glass Door Glass Pyro Th		Appelez-nous	-
4	0042536		Top Door Trim Pyro Th		Appelez-nous	-
5	Y0040844		Inner Baffle Th Pyro Door		Appelez-nous	-
6	Y0040247		Sub 40242y, Door Liner, Gray		Appelez-nous	-
7	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
8	Y0040949		Window Mtg Brkt Pyro Th Dr		Appelez-nous	-
9	Y0041977		Sub 95197		Appelez-nous	-
10	Y0040748		Sub 52039, Latch Plate		Appelez-nous	-
11	Y0042413		Gasket, Door (76``)		Appelez-nous	-
12	0041839		Black Screw 8-18x.500		Appelez-nous	-
13	0040225		Sub 40222y, Door Pad, T.h.		Appelez-nous	-
14	42772		Transformer				$ 2.84
15	Y0041799		Screw, No. 8a X 1/4		Appelez-nous	-
16	Y41808		Screw		Appelez-nous	-
17	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
