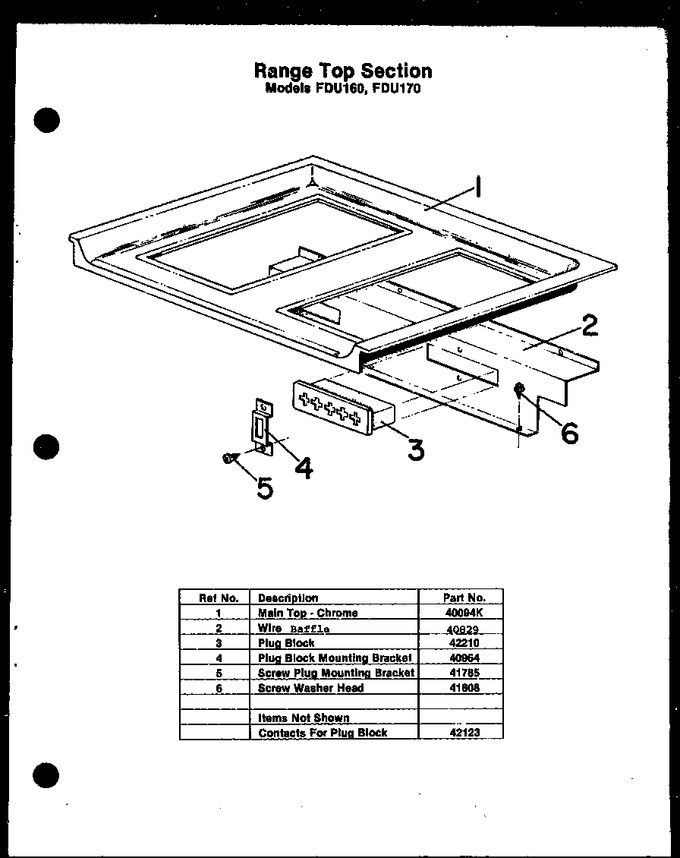

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40094K		Main Top-chrome		Appelez-nous	-
2	Y0040829		Plug Block Baffle Du976 966		Appelez-nous	-
3	Y0042210		Plug Block Modular Top		Appelez-nous	-
4	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
5	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
6	Y41808		Screw		Appelez-nous	-
NI	Y0042123		Element, Contact-module Top		Appelez-nous	-
