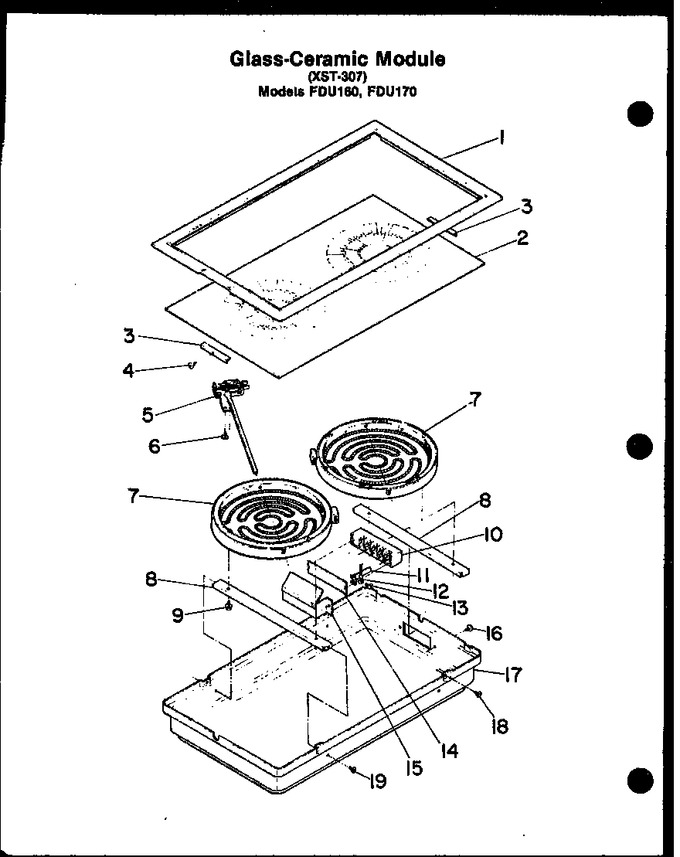

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0041480		Module Frame Glass Assy-chrome		Appelez-nous	-
2	Y00000000		See Note Black Glass-ceramic		Appelez-nous	-
3	Y0040977		Glass Retainer, Xst30		Appelez-nous	-
4	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
7	Y0042167		Element, Glass Top		Appelez-nous	-
8	0040970		Element Mtg. Brkt		Appelez-nous	-
9	Y41808		Screw		Appelez-nous	-
10	Y0042211		Module, Plug Block		Appelez-nous	-
11	Y0052041		Contact, Spade-ground				$ 4.83
11	Y0052040		Contact, Spade-power		Appelez-nous	-
12	0043666		5644044 Jumper Wire		Appelez-nous	-
13	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
14	Y0041994		Insulator-cooktop Module		Appelez-nous	-
15	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
16	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
17	0040607		Module Pan (blk)		Appelez-nous	-
18	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
19	Y41808		Screw		Appelez-nous	-
