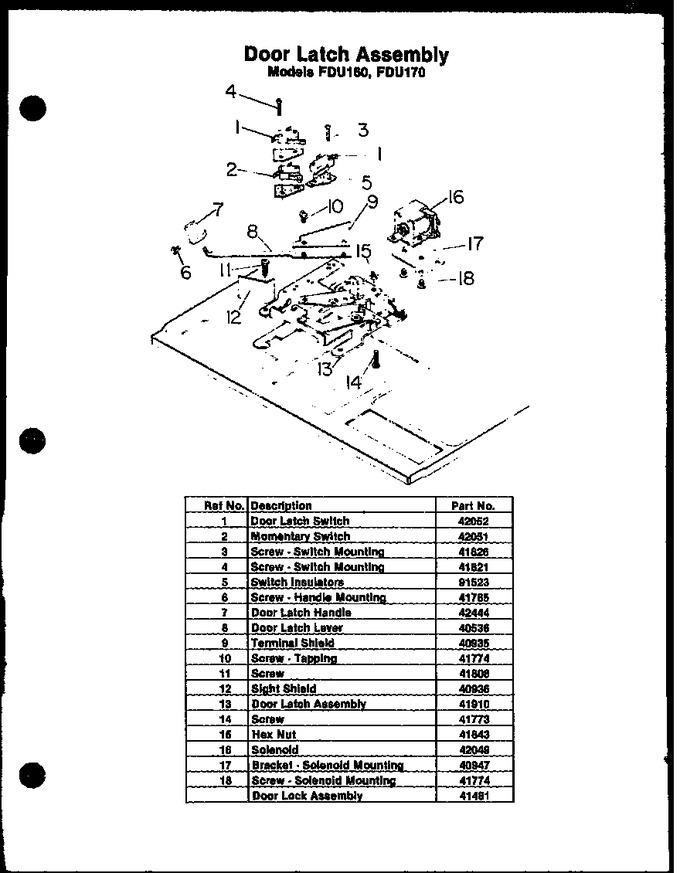

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
2	0042051		Main Contact Switch		Appelez-nous	-
3	Y0041826		Screw 4 X 40x.500 Dyro T (blk)		Appelez-nous	-
4	Y0041821		Screw 4-40x15/16``		Appelez-nous	-
5	Y0091523		Insulation, Esm		Appelez-nous	-
6	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
7	0042444		Door Latch Handle		Appelez-nous	-
8	0040536		Door Latch Lever Pyro Th		Appelez-nous	-
9	Y0040935		Terminal Shield Pyro Th		Appelez-nous	-
10	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
11	Y41808		Screw		Appelez-nous	-
12	Y0040936		Sight Shield Pyro Th		Appelez-nous	-
13	0041910		Door Latch Assy Th		Appelez-nous	-
14	0041773		Screw 6 32x1 Slotted Rn Brass		Appelez-nous	-
15	M0282005		Nut A   (Replaces: Y0041843)				$ 7.07
16	Y0042049		Solenoid Eaton Pyro Th Wo		Appelez-nous	-
17	0040947		Solenoid Mtg. Brkt Pyro		Appelez-nous	-
18	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
18	0041481		Door Lock Assy		Appelez-nous	-
