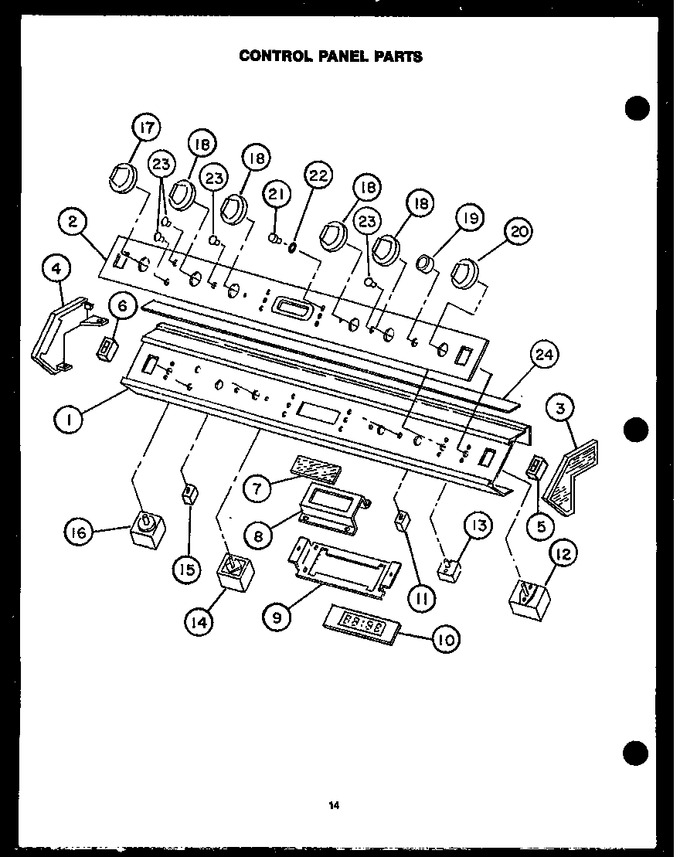

01 - Control Panel Parts


02 - Cooktop Mod-xst205-2b/xst205-2w/xst305


03 - Electrical Components


04 - Lower Oven Cabinet Assy


05 - Main Top And Oven Assy


06 - Module -xst10/xst202-2b/xst202-2w


07 - Module-xst207-2b/xst207-2w/xst307


08 - Oven Door Parts


09 - Page 1


10 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0058384		Sub 300996, Control Panel		Appelez-nous	-
2	0300288		Inlay, Control Panel(black)		Appelez-nous	-
3	0058385		End Cap - R.h.		Appelez-nous	-
4	0058386		End Cap - L.h.		Appelez-nous	-
5	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
6	0300569		Switch, On-off		Appelez-nous	-
7	0300623		Glass, Clock		Appelez-nous	-
8	0300622		Mounting Bracket, Glass		Appelez-nous	-
9	Y0300382		Mtg. Bracket, Clock		Appelez-nous	-
9	Y0094682		Screw Type 23 6-32x5/16		Appelez-nous	-
10	Y00000000		See Note Clock Electronic -- (refer To Electrical Component Section)		Appelez-nous	-
11	0065822		Light Indicator		Appelez-nous	-
12	Y0063008		Switch, Selector		Appelez-nous	-
13	Y0300574		Switch, Fan		Appelez-nous	-
13	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
14	W11121639		Switch,inf(240p-1243)   (Replaces: Y0058773)				$ 149.17
15	Y0058453		Indicator Light		Appelez-nous	-
16	0060524		Control, Elec Thermostat		Appelez-nous	-
17	0300380		Knob, Thermostat(black)		Appelez-nous	-
18	0300378		Knob, Top Element		Appelez-nous	-
19	Y0300581		Knob, Fan Switch (black)		Appelez-nous	-
20	0300379		Knob, Selector Switch, Black		Appelez-nous	-
21	Y0300614		Button, W/cushion		Appelez-nous	-
22	Y0300615		Sub 301481, Bushing, Clock		Appelez-nous	-
23	Y0301208		Lens, Indicator Light, Red		Appelez-nous	-
24	0301130		Sub 301131,inlay Control Panel		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
