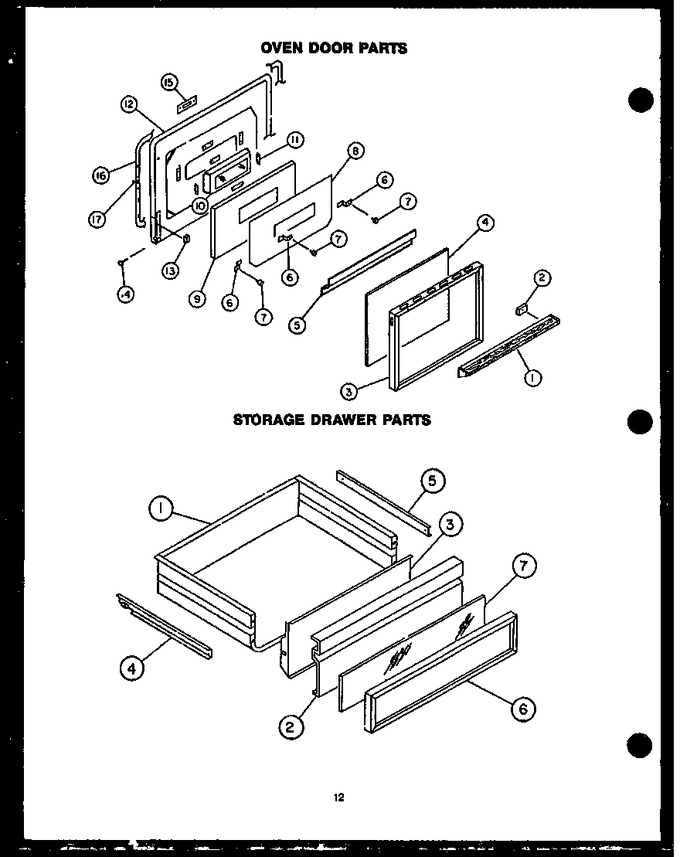

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y058562B		Drawer, Storage (blk)		Appelez-nous	-
1	0068150		Handle, Door		Appelez-nous	-
2	Y0079978		Spacer Door Handle		Appelez-nous	-
2	059499B		Panel, Drawer		Appelez-nous	-
3	0063804		Frame, Door, Black		Appelez-nous	-
3	057441G		Liner Drawer Panel		Appelez-nous	-
4	Y0063650		Panel, Black Glass		Appelez-nous	-
4	Y0058560		Runner, Drawer, L.h.		Appelez-nous	-
5	0063193		Plate, Air Baffle		Appelez-nous	-
5	Y0058561		Runner, Drawer, R.h.		Appelez-nous	-
6	0059498		Door Panel Frame, Black		Appelez-nous	-
6	Y0062439		Support Bracket, Glass		Appelez-nous	-
7	Y0063661		Bumper, Oven Door		Appelez-nous	-
7	Y0063501		Panel, Black Glass		Appelez-nous	-
8	Y0063656		Plate, Insulation		Appelez-nous	-
9	0062614		Insulation,door-sub Backer		Appelez-nous	-
10	Y0058312		Window Assy		Appelez-nous	-
11	Y0052629		Retainer, Door Glass		Appelez-nous	-
12	0063517		Sub 63517y, Door Backer		Appelez-nous	-
13	Y0060247		Bumper, Rubber		Appelez-nous	-
14	0091632		Rivet		Appelez-nous	-
15	Y0052039		Latch Plate		Appelez-nous	-
16	0071637		Dr. Gasket		Appelez-nous	-
17	0068429		Clip, Tinnerman		Appelez-nous	-
