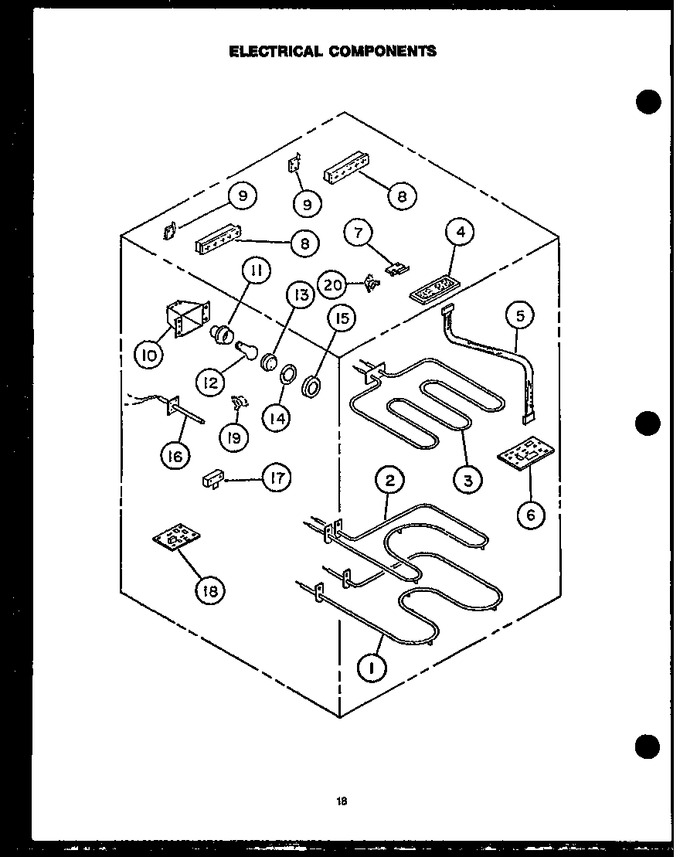

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP77001096		Element, Bake (240v-2500w)   (Replaces: Y0300538)				$ 57.67
2	Y0300539		Element, Slo-cook		Appelez-nous	-
3	Y0060241		Element, Broil (240v-3000w)		Appelez-nous	-
4	0300816		Display Board		Appelez-nous	-
5	Y0300808		Cable		Appelez-nous	-
6	Y0300807		P.c. Board, Power Supply		Appelez-nous	-
7	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
7	Y0065780		Switch, Clean Circuit				$ 11.77
8	Y0042210		Plug Block Modular Top		Appelez-nous	-
9	Y0054254		Switch, Fan		Appelez-nous	-
10	0060778		Lamp, Cup		Appelez-nous	-
11	Y0062365		Socket, Oven Light		Appelez-nous	-
12	Y0042175		Bulb, Light		Appelez-nous	-
13	0052276		Lens, Oven Light		Appelez-nous	-
14	Y0041987		Gasket,oven Light		Appelez-nous	-
15	0040995		Lens Retainer Stainless Steel		Appelez-nous	-
16	Y0060711		E.t.s. Sensor		Appelez-nous	-
17	0042185		Term Blk 1m-min		Appelez-nous	-
18	Y0059213		Circuit Board		Appelez-nous	-
19	Y0300928		Limit Control, 160 Degree		Appelez-nous	-
20	Y0042066		Limit Switch-open 90		Appelez-nous	-
NI	Y0300536		Wire Harness, Sensor		Appelez-nous	-
