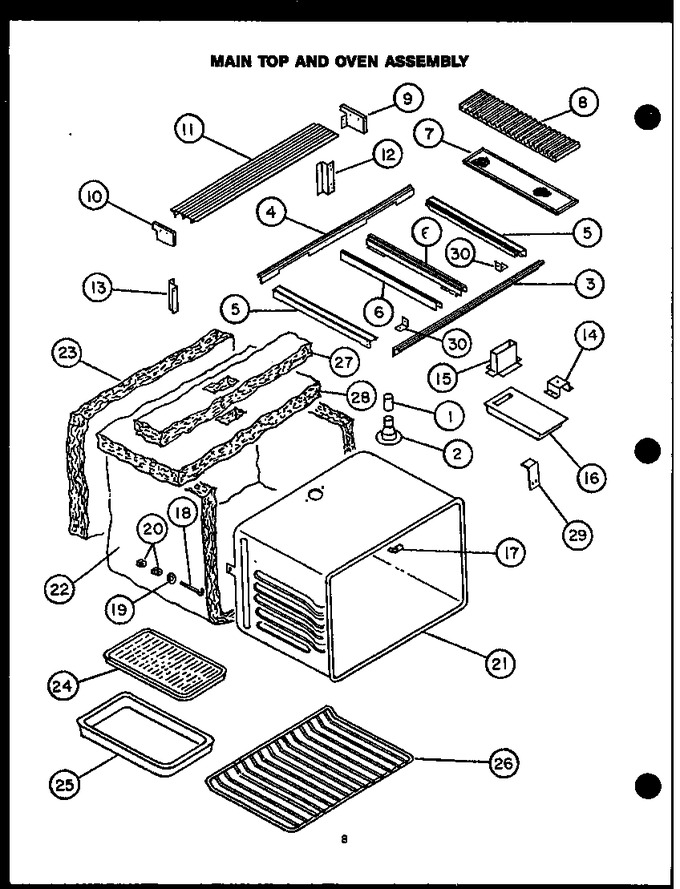

05 - Main Top And Oven Assy


06 - Module -xst10/xst202-2b/xst202-2w


07 - Module-xst207-2b/xst207-2w/xst307


08 - Oven Door Parts


09 - Page 1


10 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0060633		Tube, Vent Extension		Appelez-nous	-
2	Y0058526		Smoke Eliminator		Appelez-nous	-
3	Y058528B		Frame, Front-main Top		Appelez-nous	-
4	058529B		Frame, Rear-main Top		Appelez-nous	-
5	058530B		Kit, Side Frame		Appelez-nous	-
6	300384B		Frame, Center Main Top (blk)		Appelez-nous	-
7	Y0058525		Filter		Appelez-nous	-
8	Y0058902		Cover, Vent (blk)		Appelez-nous	-
9	0057530		End Cap, Backrail, R.h.		Appelez-nous	-
10	Y0057529		End Cap, Backrail, L.h.		Appelez-nous	-
11	058523B		Lo-backrail		Appelez-nous	-
12	0061542		Support, Backguard, Rh		Appelez-nous	-
13	0061541		Support, Backguard, Lh		Appelez-nous	-
14	Y0300632		Mtg. Bracket, Vent		Appelez-nous	-
15	Y0059431		Flue Box, Rear		Appelez-nous	-
16	Y0300641		Flue Box		Appelez-nous	-
17	0060939		Chip Cover		Appelez-nous	-
18	Y0091536		Hook Bolt		Appelez-nous	-
19	Y0071876		Washer		Appelez-nous	-
20	0071881		Sub 41847, Hex Nut		Appelez-nous	-
21	300617E		W/a Oven Back To Shell		Appelez-nous	-
22	Y2058316050		Insulation, Oven Wrapper		Appelez-nous	-
23	Y2058320050		Insulation, Oven Back		Appelez-nous	-
24	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
25	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
26	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
27	0058319		Insulation, Latch		Appelez-nous	-
28	Y2058318050		Insulation, Oven Top		Appelez-nous	-
29	Y0300943		Bracket, Vent Support		Appelez-nous	-
30	Y0301154		Bracket, Frame Trim		Appelez-nous	-
